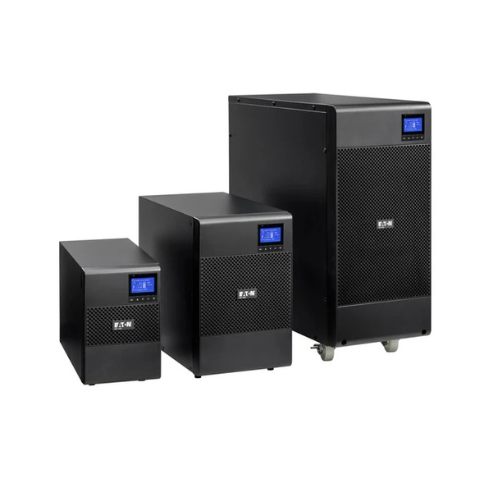

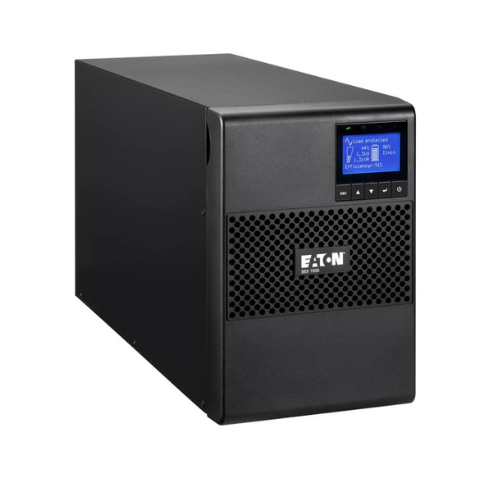

Eaton 9SX UPS Tower – 9SX 1500I
General Overview
- Model: Eaton 9SX 1500I
- Type: Online double-conversion UPS
- VA Rating: 1500 VA
- Wattage: 1350 W
- Form Factor: Tower
- Color: Black
- Topology: True online (double-conversion)
- Efficiency: 91.8% (Eco-mode: up to 96.6%)
Electrical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 190–276 V (default 230 V) |
| Input Frequency | 40–70 Hz |
| Input Connection | IEC C14 |
| Output Voltage Range | 200/208/220/230/240 V ±2% |
| Output Frequency | 50–60 Hz |
| Output Connections | 6 × IEC C13 |
| Output Waveform | Pure sine wave |
| Voltage Distortion | <3% (linear load) |
| Power Factor | 0.9 |
| Input Power Factor | >0.99 |
Battery & Runtime
- Battery Type: Sealed lead-acid

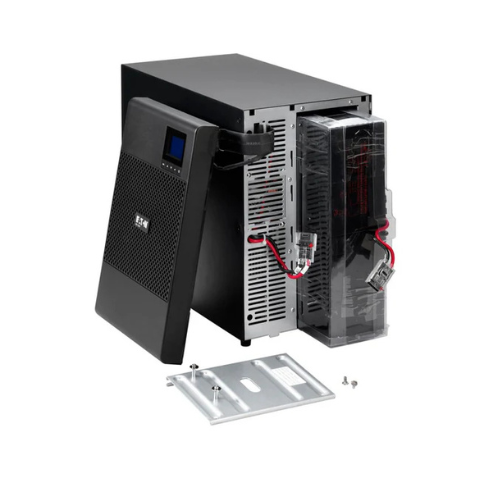

- Battery Replacement: Hot-swappable
- Extended Battery Modules (EBMs): Supports up to 4
- Backup Time: ~5.5 minutes at full load
- Battery Management: ABM technology, temperature-compensated charging, deep discharge protection, auto battery test
Smart Features

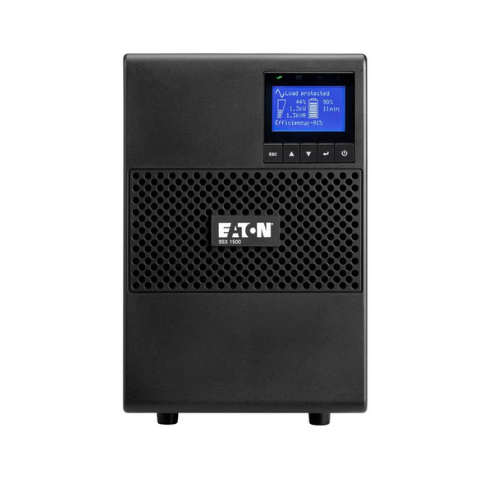

- LCD Display: Multilingual graphical interface
- Auto Shutdown: Yes
- Internal Bypass: Ensures continuity during UPS fault
- Software Compatibility: Eaton Intelligent Power Manager & Power Protector

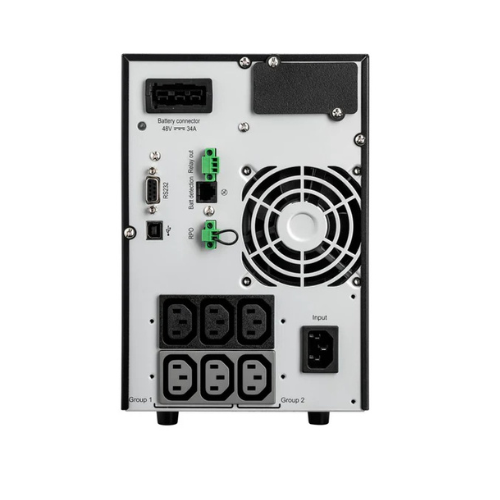

- Communications:
- USB (HID compliant)
- RS232 serial port
- Dry contacts (2 outputs, 1 input)
- Remote power off terminal
- Slot for optional communication card
Physical & Environmental
| Attribute | Value |
|---|---|
| Dimensions (HxWxD) | 25.2 × 43.7 × 16 cm |
| Weight | 18.5 kg |
| Noise Level | <43 dB at 1 meter |
| Operating Temp | 0°C to 40°C |
| Altitude | Up to 3000 m |
| Humidity | 0–95% non-condensing |
