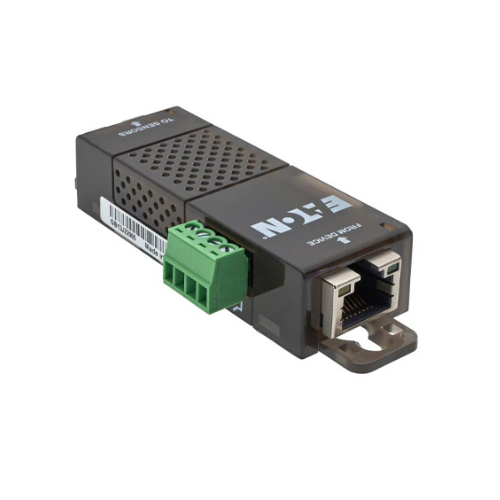

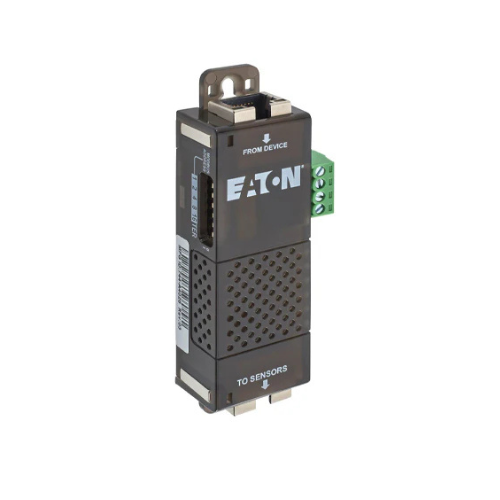

Eaton Environmental Monitoring Probe Gen 2
Core Functionality
- Model: EMPDT1H1C2
- Type: Environmental Monitoring Probe Gen 2
- Purpose: Monitors ambient temperature, humidity, and supports dry-contact sensors

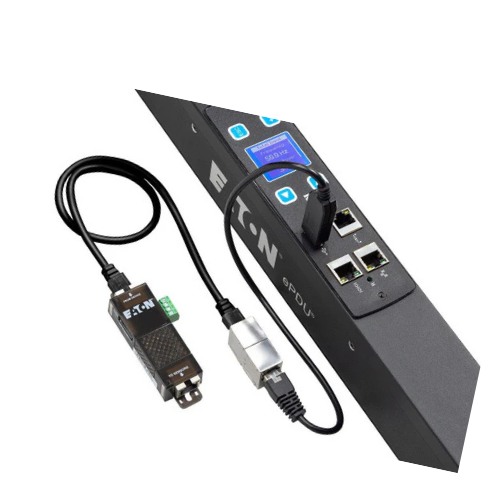

- Compatibility: Eaton Gigabit Network Cards (Network-M2, Network-M3) and Eaton rack PDUs (G3, G3HD, G3+, G4)
Sensor Capabilities
| Sensor Type | Range & Accuracy |
|---|---|
| Temperature | 0°C to 70°C (±2°C accuracy) |
| Humidity | 10% to 90% RH (±5% accuracy) |
| Dry Contacts | 2 inputs per probe (expandable to 6 total) |
- Supports up to two additional contact sensors per module (e.g., smoke, water leak, vibration, door sensors)
- Up to three EMPDT1H1C2 units can be daisy-chained per host device
Smart Features
- Real-Time Monitoring: View sensor status via SNMP, web browser, or Eaton software
- Alarm Notifications: Email alerts for threshold breaches or sensor triggers
- Custom Actions: Configure automated shutdown or load-shedding protocols during environmental events
- Visual Indicators: Translucent case with LED for quick status checks while walking the aisles
Mounting & Installation
- Mounting Options:
- Nylon fasteners
- Cable tie slots
- Magnets
- Keyhole slots
- Optimized Placement: Designed for front/rear door perforation to measure airflow at intake points
- Tool-Free Setup: Fast, flexible installation on rack rails, walls, or enclosures
Physical Specifications
| Attribute | Value |
|---|---|
| Dimensions | 57.6 × 37.6 × 29.3 mm (2.26 × 1.48 × 1.15 in) |
| Weight | 34 g (1.19 oz) |
| Power Source | Powered via host device (no external power needed) |
Certifications & Compliance
- Designed for use in enterprise-grade IT environments
- Fully compatible with Eaton’s power management ecosystem
- Compliant with Eaton’s environmental and safety standards
