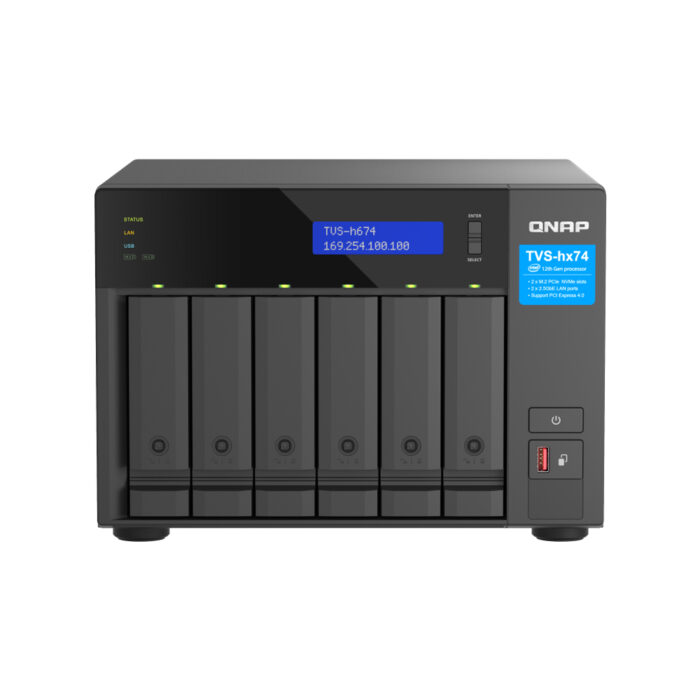

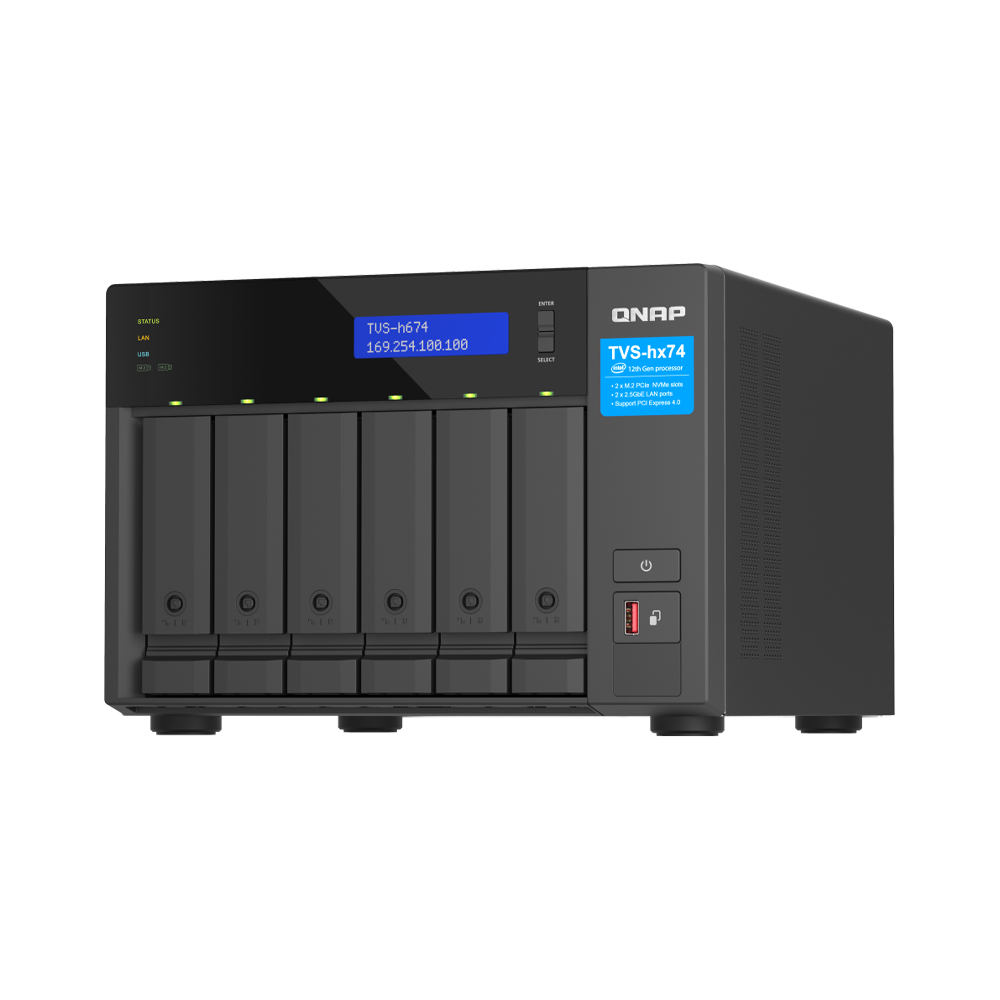

With an Intel® Core™ i5 six-core Processor or Intel® Core™ i3 quad-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h674 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h674 delivers an ideal NAS solution. The high-performance TVS-h674 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE connectivity for high-speed virtualization network environments.
-
M.2 PCIe Gen 4
Enable NVMe SSD caching or Edge TPU empowered AI image recognition.
-
2.5GbE connectivity
2.5GbE ports provide higher transmission speeds with existing Cat 5e cables.
-
Flexible PCIe Gen4 expansion
PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
-
Virtual machines and containers
Host multiple virtual machines and containers with optimized resource utilization.
-
Full HD HDMI™
Directly view creative works on an HDMI™ display. Enjoy smooth full HD media playback and real-time transcoding.
-
Faster image recognition with AI acceleration
The built-in Intel® OpenVINO™ and Intel® UHD Graphics help boost AI image recognition and offload CPU workloads.
TVS-h674-i5-32G
Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz, 32 GB SODIMM DDR4 (2 x 16 GB)
High-performance Intel® Core™ processor bursts up to 4.4 GHz
The TVS-h674 adopts an Intel® Core™ i5 six-core Processor or Intel® Core™ i3 quad-core Processor with Intel® UHD Graphics 730 to increase multi-tasking capabilities, offering SMBs a secure, reliable, and high-performance NAS solution.
| 2 x 25GbE SMB sequential throughput (1M) | Write
3314 MB/s
|
Read
3231 MB/s
|
|---|---|---|
| 1 x 25GbE SMB sequential throughput (1M) | Write
2947 MB/s
|
Read
2954 MB/s
|
| 2 x 2.5GbE SMB sequential throughput (1M) | Write
590 MB/s
|
Read
591 MB/s
|
Abundant I/O capabilities with PCIe expansion
The TVS-h674 has two PCIe slots that allow for installing various expansion cards for expanding application potential.
Graphics cards
Supercharge your video editing and transcoding or enable GPU pass-through to virtual machines.
Note:
1. Supports graphics cards with dimensions up to 169 x 47 x 111.5 mm (with cable).
2. Only entry-level graphics cards (that can be powered solely through the PCIe slot) are supported.
Learn More:Check for compatible graphics cards
TVS-h674-i5-32G
| CPU | Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 730 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB SODIMM DDR4 (2 x 16 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility.
|
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Card dimensions for PCIe slot 1~Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 × 264.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 6.32 kg |
| Weight (Gross) | 7.89 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: HDD Sleep Mode | 39.911 W |
| Power Consumption: Operating Mode, Typical | 79.363 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | System fan: 2 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2500 |
