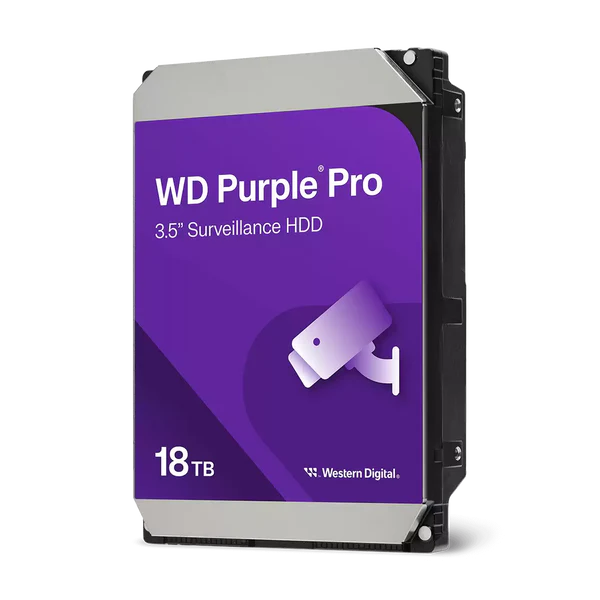

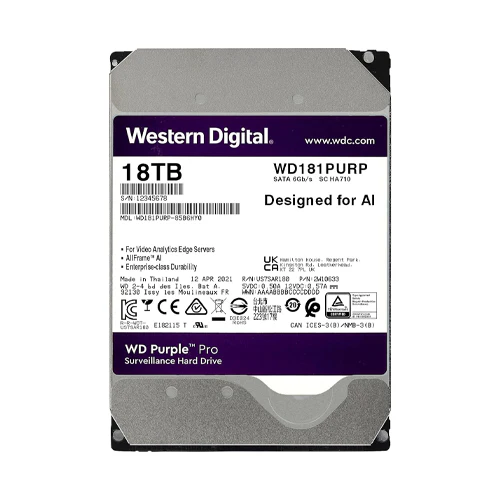

The Western Digital 18TB WD Purple Pro Smart Video Hard Drive (WD181PURP) is a top-of-the-line, enterprise-grade internal hard disk drive meticulously engineered for the most demanding 24/7 smart video surveillance systems.¹ It combines immense storage capacity with robust performance and specialized features to handle high-resolution video streams and intensive AI/deep learning analytics workloads.²

Key Features

• Capacity: A colossal 18TB of storage, providing extensive space for prolonged retention of high-resolution video footage from numerous cameras.⁴
• Form Factor: Standard 3.5-inch internal hard drive, fitting into most Network Video Recorders (NVRs), Digital Video Recorders (DVRs), video analytics servers, and surveillance enclosures.⁵
• Interface: SATA III (6 Gb/s), ensuring a high-speed and stable connection for continuous data throughput.
• Rotational Speed (RPM): 7200 RPM, delivering higher performance than typical 5400 RPM drives.⁶ This speed is crucial for managing multiple concurrent video streams and facilitating rapid data access needed for AI processing
• Cache: A substantial 512MB cache, which significantly aids in optimizing data flow, reducing latency, and preventing frame loss during intensive recording and playback operations.⁷
• AllFrame™ AI Technology: This exclusive Western Digital technology is a core differentiator.⁸ It’s designed to minimize frame loss and enhance overall video playback.⁹ Crucially, it supports up to 32 AI streams for deep learning analytics within the system, alongside the capability to handle up to 64 single-stream HD cameras.¹⁰
• Workload Rating: An impressive 550 TB/year, indicating its exceptional endurance.¹¹ This rating signifies its ability to withstand constant, heavy data writes and reads, which are characteristic of advanced surveillance environments with AI and analytics running continuously.¹²

Specifications

• Reliability:
• • Mean Time Between Failures (MTBF): Rated at up to 2.5 million hours, demonstrating outstanding durability and longevity for always-on, mission-critical operations.¹³

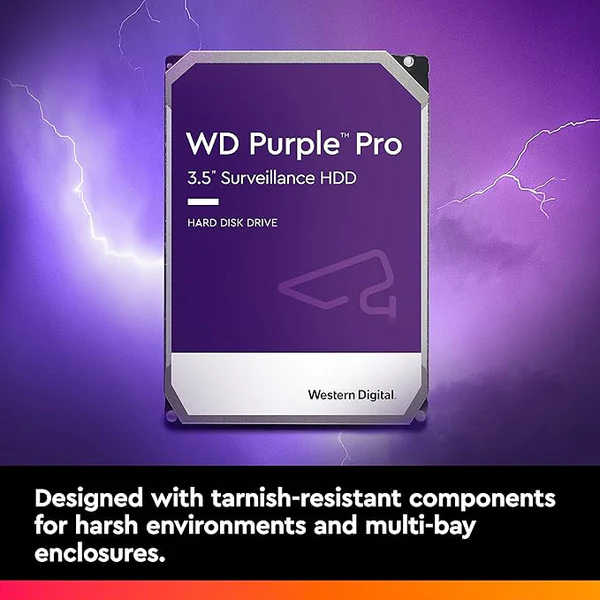

  • Constructed with tarnish-resistant components for reliable performance even in potentially harsh or fluctuating environmental conditions.¹⁴
  • Features full multi-bay support and enhanced robustness to effectively minimize operational vibrations that can occur in large, multi-drive NVRs or RAID configurations.¹⁵
• Recording Technology: Employs Conventional Magnetic Recording (CMR), which is widely recognized and preferred for its consistent performance and reliability, especially in surveillance and enterprise RAID arrays, over Shingled Magnetic Recording (SMR) drives.
• HelioSeal Technology: This drive utilizes helium-filled technology (often in capacities 10TB and above), which allows for thinner platters, increasing capacity, and reduces friction, leading to lower power consumption and improved reliability.¹
• Proactive Storage Management: May integrate with Western Digital Device Analytics (WDDA), providing drive health management features for compatible systems.¹⁷ This enables proactive monitoring and alerts regarding potential drive issues, facilitating preventative maintenance.¹⁸
• Warranty: Backed by a robust 5-year limited warranty, underscoring its enterprise-grade design and Western Digital’s confidence in its long-term reliability.¹⁹

Ideal Use Cases

The WD Purple Pro 18TB (WD181PURP) is particularly well-suited for:

• Large-scale Network Video Recorders (NVRs) managing extensive arrays of high-resolution cameras.²⁰
• AI-enabled Surveillance Systems that perform real-time video analytics, such as facial recognition, object detection, and behavioral analysis.²¹
• Deep Learning Servers dedicated to training and running AI models on vast volumes of surveillance footage.²²
• Cloud-based Surveillance Solutions requiring high-endurance, high-capacity storage for distributed video data.²³
• Enterprise and Critical Infrastructure Surveillance in environments where maximum uptime, high data integrity, and advanced capabilities are non-negotiable requirements.
