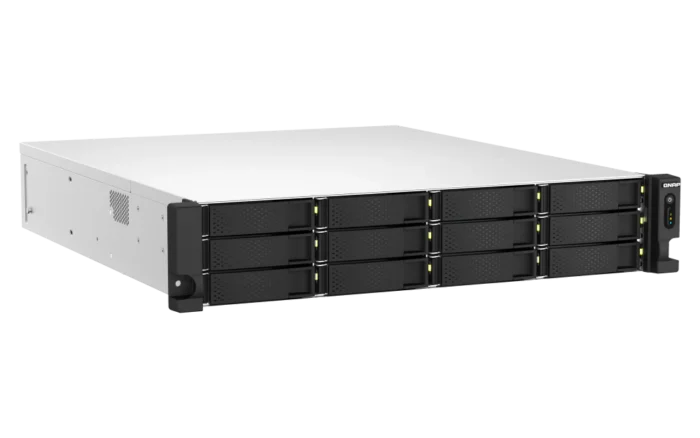

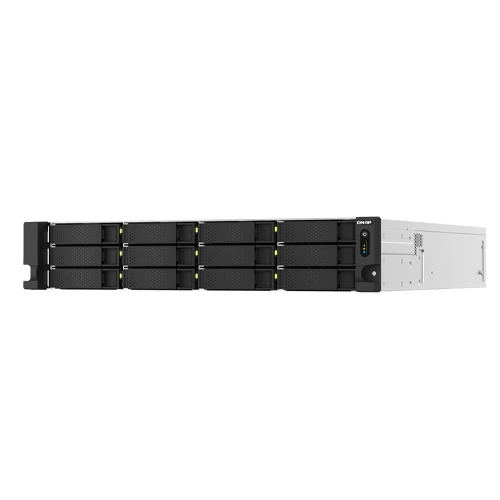

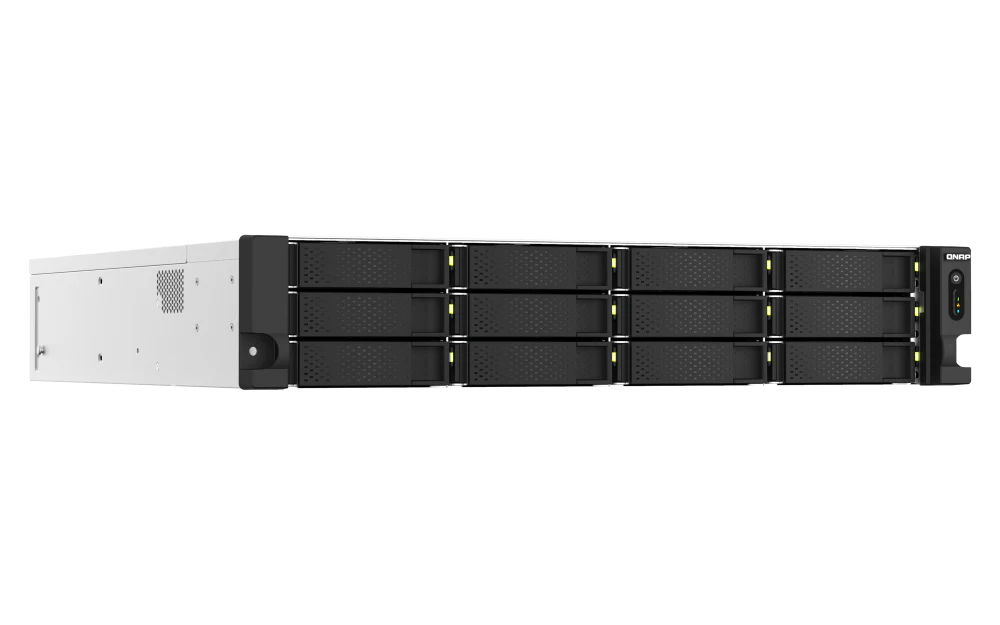

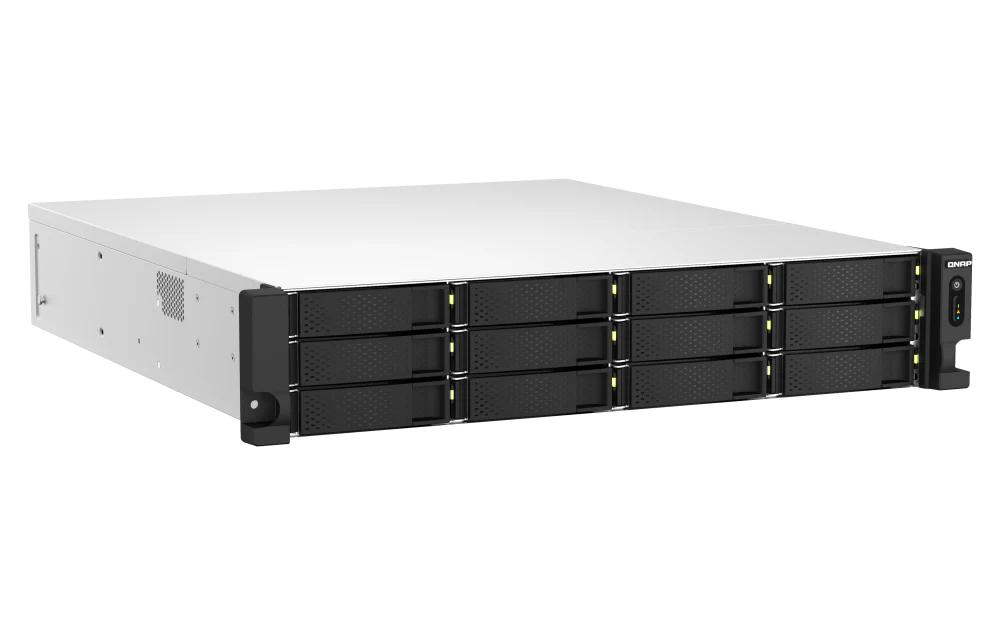

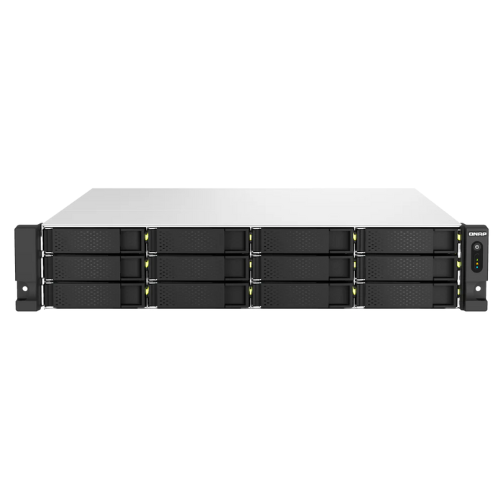

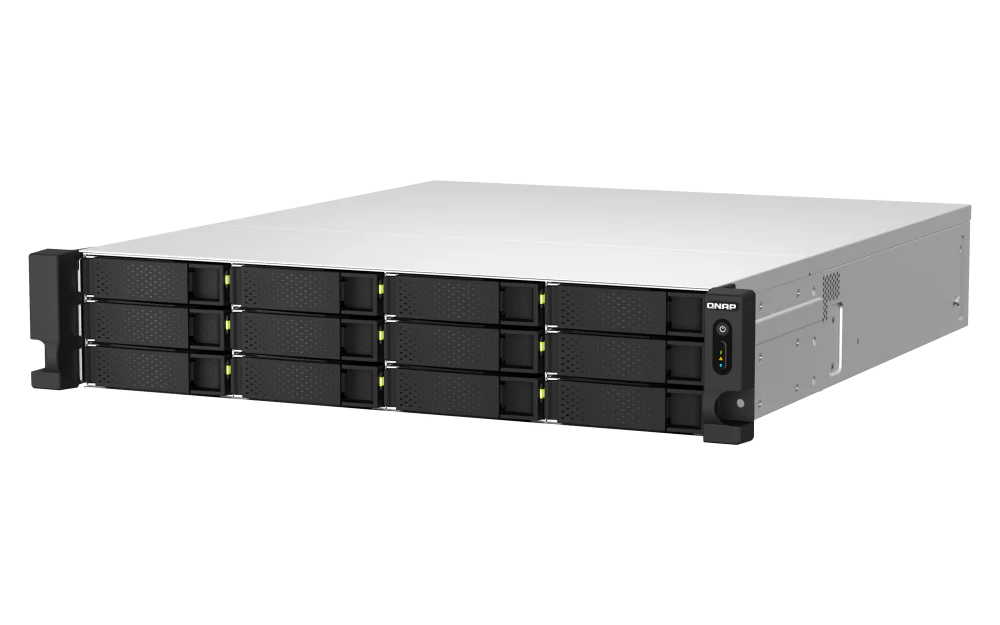

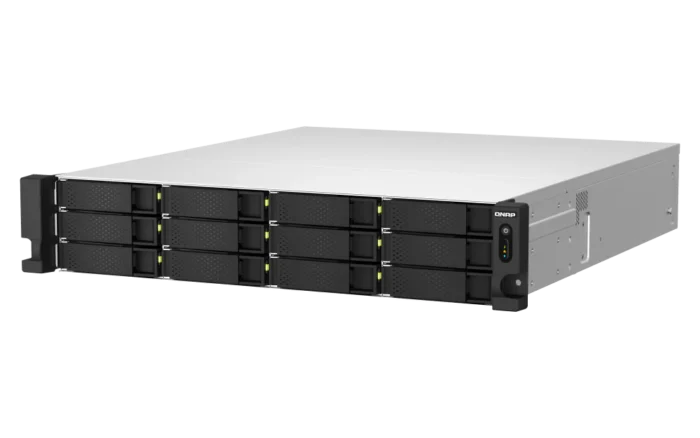

The QNAP TS-h1887XU-RP-E2334-16G is an 18-bay, 2U rackmount NAS designed for enterprise-level workloads that demand high performance, massive storage, and data integrity.

Key Features & Performance

• Processor & Memory: It’s equipped with an Intel® Xeon® E-2334 4-core, 8-thread processor (up to 4.8 GHz) and 16 GB of ECC DDR4 memory, which is expandable to a massive 128 GB across four slots. ECC memory is crucial for enterprise applications as it detects and corrects memory errors, preventing data corruption.

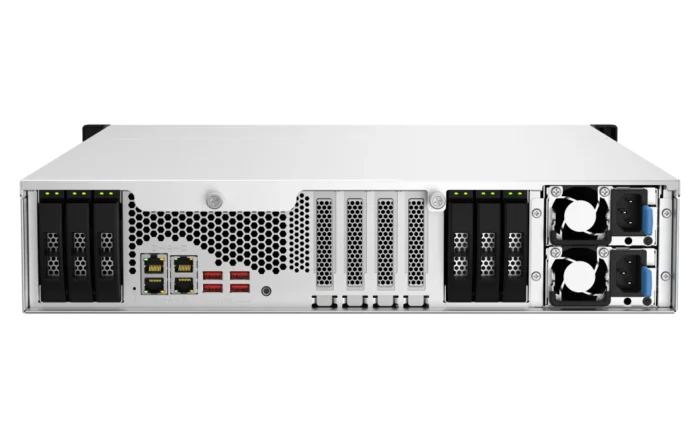

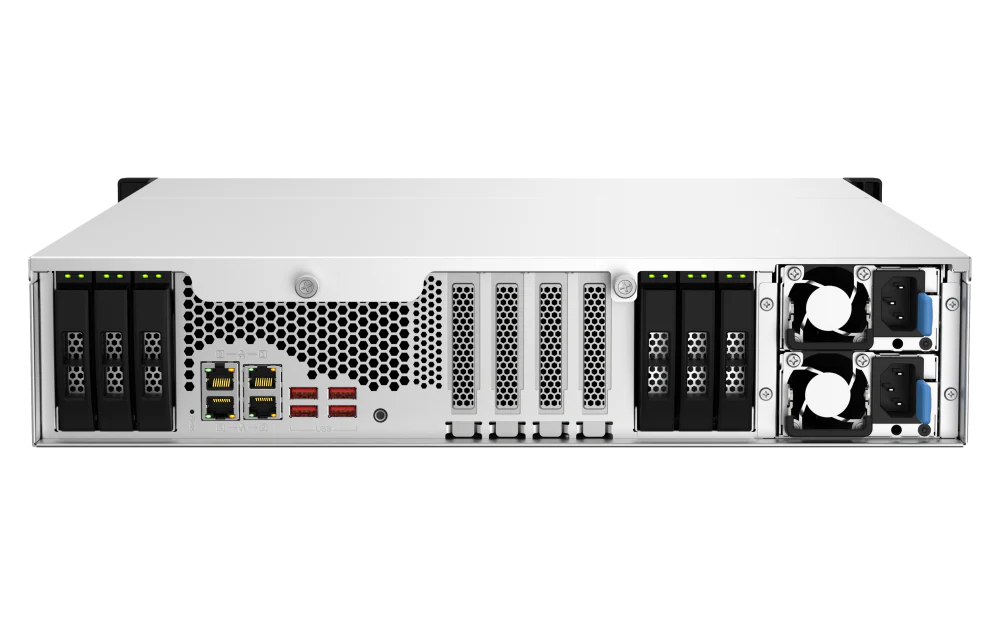

• Hybrid Storage: This NAS features a hybrid storage architecture with 12 x 3.5-inch SATA bays for high-capacity HDDs and 6 x 2.5-inch SATA bays for high-performance SSDs, allowing you to balance capacity and speed. SSD caching is supported to boost IOPS for demanding tasks.
• High-Speed Connectivity: It comes with dual built-in 10GBASE-T and dual 2.5GbE ports, providing high-speed networking for virtualization, intensive file access, and large backups.
• PCIe Gen 4 Expansion: The NAS has three PCIe Gen 4 slots (2x x4 and 1x x8), offering future-proofing and extreme flexibility. You can install optional 25GbE adapters, M.2 SSD expansion cards (QM2), or Fibre Channel cards to meet specific application needs.
• ZFS-based Operating System: Running QuTS hero, this NAS prioritizes data integrity with features like inline data deduplication, compression, and near-limitless snapshots.

Technical Specifications

• CPU: Intel® Xeon® E-2334 4-core, 3.4 GHz (up to 4.8 GHz)
• RAM: 16 GB ECC DDR4 (expandable to 128 GB)
• Drive Bays: 12 x 3.5-inch SATA, 6 x 2.5-inch SATA
• PCIe Slots: 3 x PCIe Gen 4 (2 x x4, 1 x x8)
• Network Ports: 2 x 10GBASE-T, 2 x 2.5GbE
• USB Ports: 4 x USB 3.2 Gen 2 (10Gbps) Type-A
• Power Supply: 2 x 550W Redundant PSU
• Form Factor: 2U Rackmount
• Dimensions (HxWxD): 88.6 × 432 × 511.2 mm
• Weight (Net): 14.87 kg

Important Note

The NAS does not come with hard drives or SSDs. You must purchase them separately. M.2 SSDs are supported via an optional QM2 PCIe adapter card.
