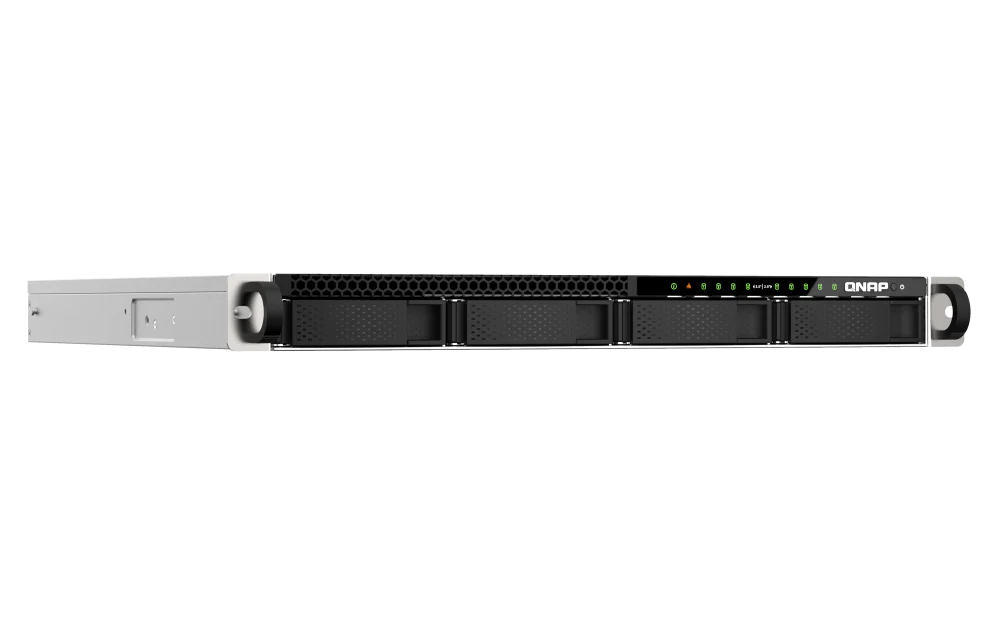

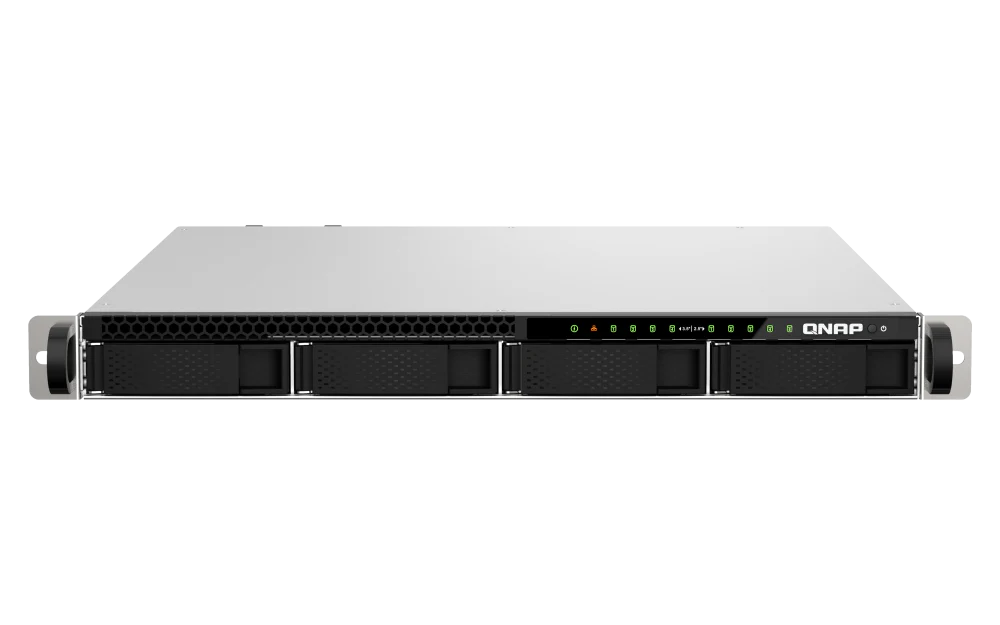

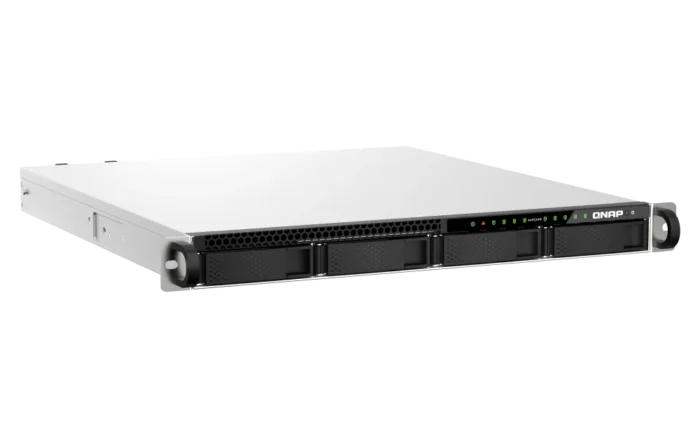

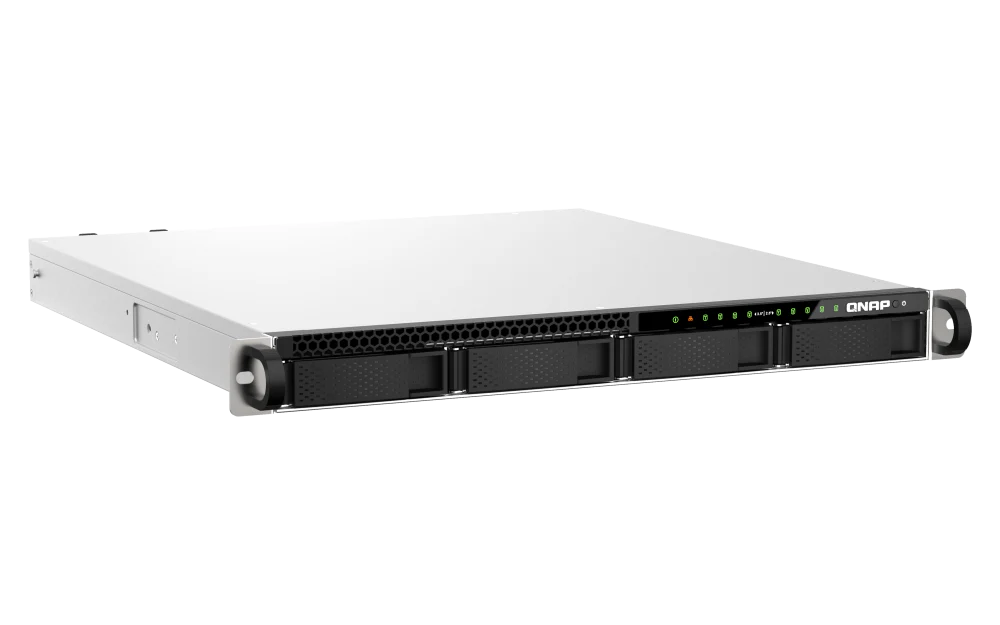

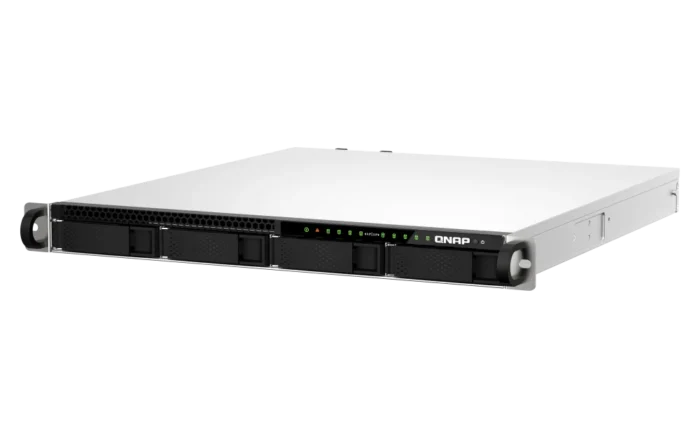

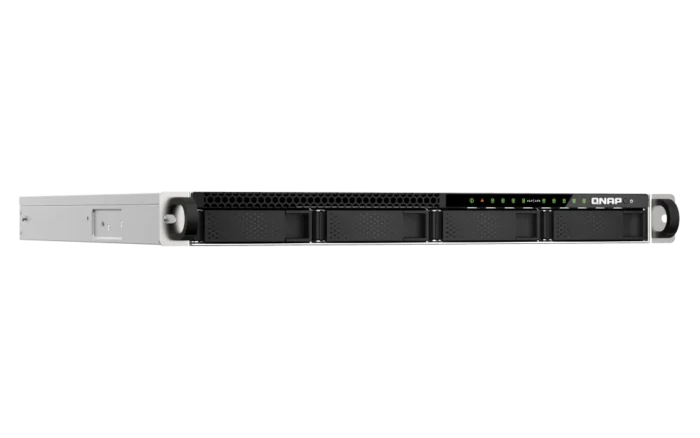

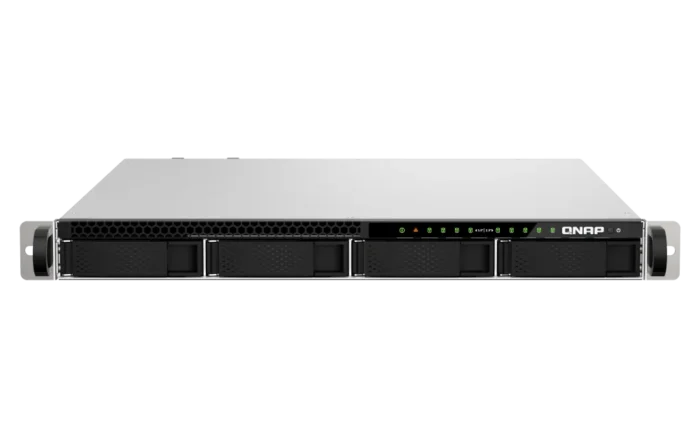

QNAP TS-h987XU-RP 9-Bay NAS Enclosure – TS-H987XU-RP-E2334-16G
The best-in-class hybrid storage solution unleashes superb server-grade ZFS system
The TS-h987XU-RP is powered by the next-gen Intel® Xeon® E-2344 quad-core processor, supports up to 128 GB DDR4 ECC memory, and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h987XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling) – providing an ideal storage solution that meets today’s business requirements for file servers, virtualization servers, VDI, and backup/restore.
-
HDD/SSD hybrid storage
Combines the advantages of high-capacity HDD and high-performance U.2 NVMe / SATA SSD, and enables SSD cache acceleration to boost IOPS performance.
-
10GbE & 2.5GbE connectivity
Dual 10GBASE-T and dual 2.5GbE high-speed connectivity enhances virtualization, intensive file access, and large backup/restoration tasks.
-
High-speed PCIe Gen 4 slots
Allows for installing 10/25GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
-
Virtualization applications
Supports virtualization storage and hosting virtual machines and containerized apps.
-
Comprehensive backup center
Optimized for business-class backup, including Google™ Workspace and Microsoft 365® data, and VMware® and Hyper-V virtual machines.
-
Cloud storage gateway
Realizes hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Powerful Intel® Xeon® E processor and up to 128 GB DDR4 ECC memory
Designed for heavy business workloads, the TS-h987XU-RP has extreme processing power to drive virtual machine performance. Supporting up to 128 GB DDR4 ECC memory to fuel multitasking demands, the TS-h987XU-RP delivers cost-efficient and reliable server-grade performance to meet increasing business IT demands.
-
CPU
Intel® Xeon® E-2334 quad-core processor (up to 4.8 GHz)
-
Memory
32 GB DDR4 ECC RAM, expandable to 128 GB (4 x 32 GB)
| SMB Sequential Throughput (1 x 25GbE) | Read
2953Â MB/s
|
Write
2940Â MB/s
|
|---|---|---|
| SMB Sequential Throughput (2 x 25GbE) | Read
5876Â MB/s
|
Write
5901Â MB/s
|
Hybrid storage architecture with U.2 NVMe PCIe Gen 4 – faster speed, optimal I/O, and lower latency
Compared with traditional storage arrays, the 1U rackmount TS-h987XU-RP hybrid storage balances cost, performance, and capacity. Featuring four 3.5-inch SATA 6Gb/s bays for hard drives, and five 2.5-inch U.2 NVMe PCIe / SATA 6Gbps SSD slots (Slot 1~3: PCIe Gen 3 x2, Slot 4~5 PCIe Gen 4 x4), the TS-h987XU-RP supports SSD caching to improve IOPS-intensive workloads for accessing vital data.
TS-h987XU-RP-E2334-16G Specs:
| CPU | Intel® Xeon® E-2334 4C 8T 3.4GHz, up to 4.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | |
| Encryption Engine | Â (AES-NI) |
| System Memory | 16 GB ECC DDR4 (1 x 16 GB) |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 9 (4 x 3.5-inch SATA + 5 x 2.5-inch U.2 PCIe / SATA)
2.5-inch bays:
#1: PCIe Gen3 x2 & SATA 6Gbps #2: PCIe Gen3 x2 & SATA 6Gbps #3: PCIe Gen3 x2 & SATA 6Gbps #4: PCIe Gen4 x4 & SATA 6Gbps #5: PCIe Gen4 x4 & SATA 6Gbps |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives2.5-inch bays: 2.5-inch U.2/U.3 NVMe PCIe solid state drives 2.5-inch SATA solid state drivesThe 2.5-inch bay only support maximum 7mm height drives. |
| Hot-swappable | |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| PCIe Slot | 1 x Gen4 x8
Card dimensions for PCIe slot：215 x 68.9x 18.76 mm / 8.46 x 2.71 x 0.74 inches
|
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor | 1U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 479 mm |
| Weight (Net) | 9.5 kg |
| Weight (Gross) | 11.5 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 2 x 300W PSU |
| Power Consumption: HDD Sleep Mode | 114.6 W |
| Power Consumption: Operating Mode, Typical | 120.58 W |
| Fan | 4 x 40mm, 12VDC |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 11000 |
