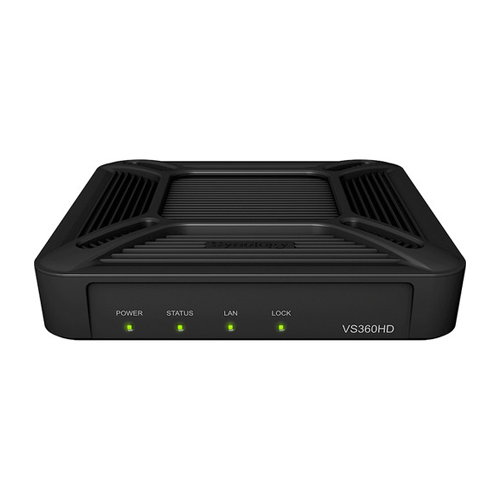

Synology VS360HD VisualStation Video Decoder with Live-View and Playback
The VS360HD connects to your network via Gigabit RJ45 and pairs with a Synology NAS running Surveillance Station 7.0+. It provides a compact, low‑power solution to monitor and control cameras from a dedicated monitor, with options to store snapshots and recordings to a USB drive. Ideal for control rooms, retail counters, reception desks, and any location where a dedicated PC is not desirable.
Ports and Connectivity
- Network: Gigabit RJ45 for NAS and network access.
- Video: HDMI for modern monitors; VGA for legacy displays.
- USB: USB 3.0 for external storage; USB 2.0 for mouse, joystick, keyboard.

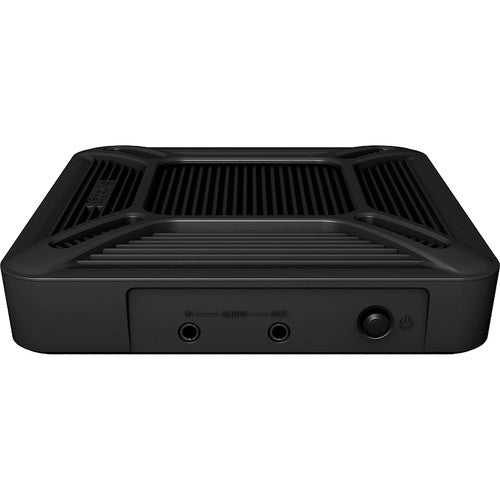

- Audio: 3.5 mm in/out for mic or speaker integration.
Quick Setup
- Connect VS360HD to network via RJ45.
- Attach HDMI or VGA monitor and optional USB mouse/joystick.
- Ensure Synology NAS has Surveillance Station 7.0+ installed.
- Pair the VisualStation with the NAS from Surveillance Station.
- Configure camera layout, PTZ controls, and USB storage for snapshots/recordings.
Key Features
- PC-Less Live-View and Playback from NAS
- RJ45 Ethernet Port to Connect to Network
- Supports Up to 1080p Resolution at 60 Hz
- View Up to 36 IP Cameras
- H.264, MPEG-4, and MJPEG Compression
- HDMI and VGA Video Outputs
- USB 3.0 Port for Storage
- USB 2.0 Ports for Mouse/Joystick Control
- Requires Synology NAS
- Requires Surveillance Station 7.0 and Up
Synology VS360HD Specs:
| Attribute | Specification |
| Video outputs | 1 × HDMI; 1 × VGA |
| Max resolution | 1920 × 1080 @ 60 Hz |
| Audio | 1 × 3.5 mm in; 1 × 3.5 mm out |
| USB | 1 × USB 3.0; 2 × USB 2.0 |
| Ethernet | 1 × RJ45 Gigabit LAN |
| Power supply | 36 W adapter; 100–240 VAC input |
| Power consumption | 4.76 W (36‑channel full load); 3.61 W (idle) |
| Operating temp | Decoder: −20 to 50 °C |
| Storage temp | −20 to 60 °C |
| Humidity | 5% to 95% |
| Dimensions | 32 × 130 × 130 mm |
| Weight | 0.3 kg |
