Synology RKS-02 Full Description
Product Overview

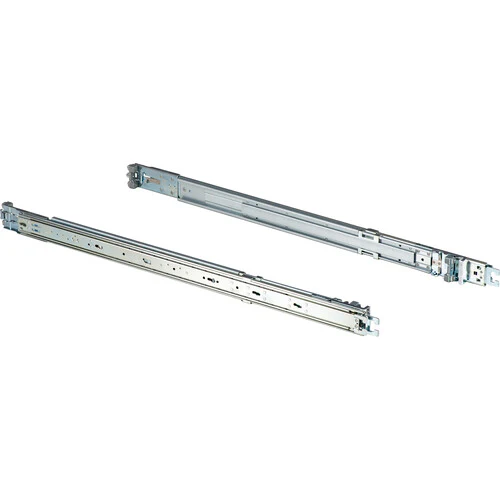

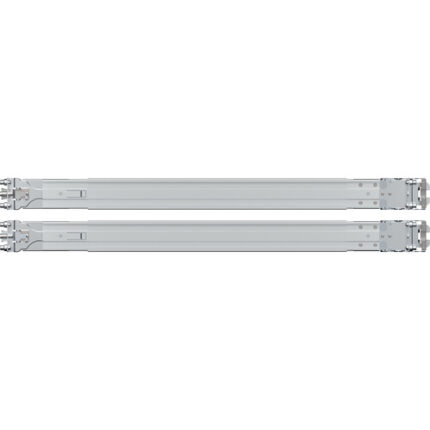

The Synology RKS-02 is a sliding rail kit engineered for Synology rackmount servers, enabling tool-free chassis installation and effortless slide-in/slide-out access for maintenance, drive swaps, and system upgrades. It fits standard EIA 19″ racks with post widths ≥ 450 mm and panel widths ≥ 480 mm.
Key Features
- Tool-free sliding-rail design for fast chassis insertion and removal
- Adjustable rack-mounting depth from 610 mm to 890 mm
- Supports square holes ≥ 9.5 × 9.5 mm and round holes ≥ 7.1 mm
- Durable steel construction ensures stable alignment and smooth movement
- Backed by Synology’s one-year limited hardware warranty
Technical Specifications
| Specification | Details |
|---|---|
| Mount Post Width | ≥ 450 mm |
| Rack Panel Width | ≥ 480 mm |
| Rack-Mounting Depth | 610 mm – 890 mm |
| Mounting Hole Support | Square ≥ 9.5 × 9.5 mm; Round ≥ 7.1 mm |
| Rail Type | Sliding rail kit for 1U/2U chassis |
| Material | Cold-rolled steel |
| Warranty | 1 year limited |
Specifications subject to change without notice.
Compatibility
Validated for a broad range of Synology rackmount models, including:
- FS Series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2017
- SA Series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
- UC Series: UC3400, UC3200
- DP Series: DP7200, DP7400
- 23 Series: RS2423RP+, RS2423+, RX1223RP
- 22 Series: RS822RP+, RS822+, RS422+, RX1222sas
- 21 Series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, FX2421
- 20 Series: RS820RP+, RS820+
- 19 Series: RS1619xs+, RS1219+, RS819, RXD1219sas
- 18 Series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, RX418
- 17 Series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, RX2417sas, RX1217sas, RX1217RP, RX1217
- 16 Series: RS18016xs+, RS2416RP+, RS2416+, RS816, RX1216sas
- 15 Series: RS815RP+, RS815+, RS815, RC18015xs+, RXD1215sas, RX415
- 14 Series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+, RS814RP+, RS814+, RS814, RX1214RP, RX1214
- 13 Series: RS10613xs+, RS3413xs+, RX1213sas
- 12 Series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+, RS812RP+, RS812+, RS812
- 11 Series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+, RS411, RX1211RP, RX1211
- 10 Series: RS810RP+, RS810+, RX410
- 9 Series: RS409RP+, RS409+, RS409, RX4
Installation Guide
- Align front and rear rail sections with your rack’s mounting posts (depth: 610 mm–890 mm).
- Snap the rails onto the posts tool-free until they lock.
- Attach the inner rails to your NAS chassis using the included screws.
- Slide the chassis into the rails until it clicks; press the release tabs to remove.
Rails ensure smooth movement and prevent chassis tipping during service.
Use Cases
- Simplifying rack-mounted NAS deployments in data centers
- Streamlining drive replacements and hardware upgrades in 1U/2U systems
- Reducing maintenance downtime for high-availability environments
- Ensuring consistent alignment and weight distribution for rack stations
Warranty & Support
Synology backs the RKS-02 with a one-year limited hardware warranty from the date of purchase. LiveChat support and authorized partners are available for deployment assistance and troubleshooting.
