The QXG-25G2SF-CX6 features an NVIDIA Mellanox® ConnectX®-6 Lx SmartNIC controller, supports PCIe Gen4 (backwards compatible with Gen3/ Gen2) and provides up to 25 Gbps transfer speeds (supports 10/25Gbps). By using Port Trunking to combine multiple ports, up to 50GbE can be achieved for accelerating file sharing and intensive data transfer. With SR-IOV support, the QXG-25G2SF-CX6 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers.
High-speed 25GbE Networking
The TS-h3088XU-RP supports 25GbE networking, and can be used with the QXG-25G2SF-CX6 to expand network connectivity. It can also be used with a 25GbE Switch to build a budget-friendly high-speed network environment.
Strengthen Your virtualization Environment with SR-IOV and RoCE
The QXG-25G2SF-CX6 supports SR-IOV, which can allocate bandwidth resources from a physical network card directly to VMs. It ensures reliable VM applications and reduced CPU overheads. The QXG-25G2SF-CX6 also supports RoCE, which can access a network directly in RAM to effectively reduce latency and enhance performance and efficiency for VMware® virtualization environments.
Note:
1. SR-IOV is supported by specific QNAP NAS models and should work with SR-IOV compatible adapters. Click here to check supported NAS models.
2. Both the NAS that installs the QXG-25G2SF-CX6 and the receiving-end devices must support RoCE. If the receiving devices do not support RoCE, it will use TCP/IP.
Ensure reliable data transfer with Forward Error Correction (FEC)
The QXG-25G2SF-CX6 supports FEC to overcome packet loss – a potentially common occurrence in fast, long-distance networks. FEC helps the receiving side detect and recover lost data to correct bit errors, thus ensuring reliable data transmission over “noisy” communication channels. With three FEC modes, you can use a suitable cable and switch to build an optimal network environment.
Supports Windows and Linux servers/workstations
Besides QNAP devices, the QXG-25G2SF-CX6 supports many platforms, including Windows® 10, Windows Server®, and Linux® (driver required) which allows you to attain optimal business performance for a wider range of system applications and services. The higher bandwidth density with reduced links helps reduce cabling footprint and operational costs.

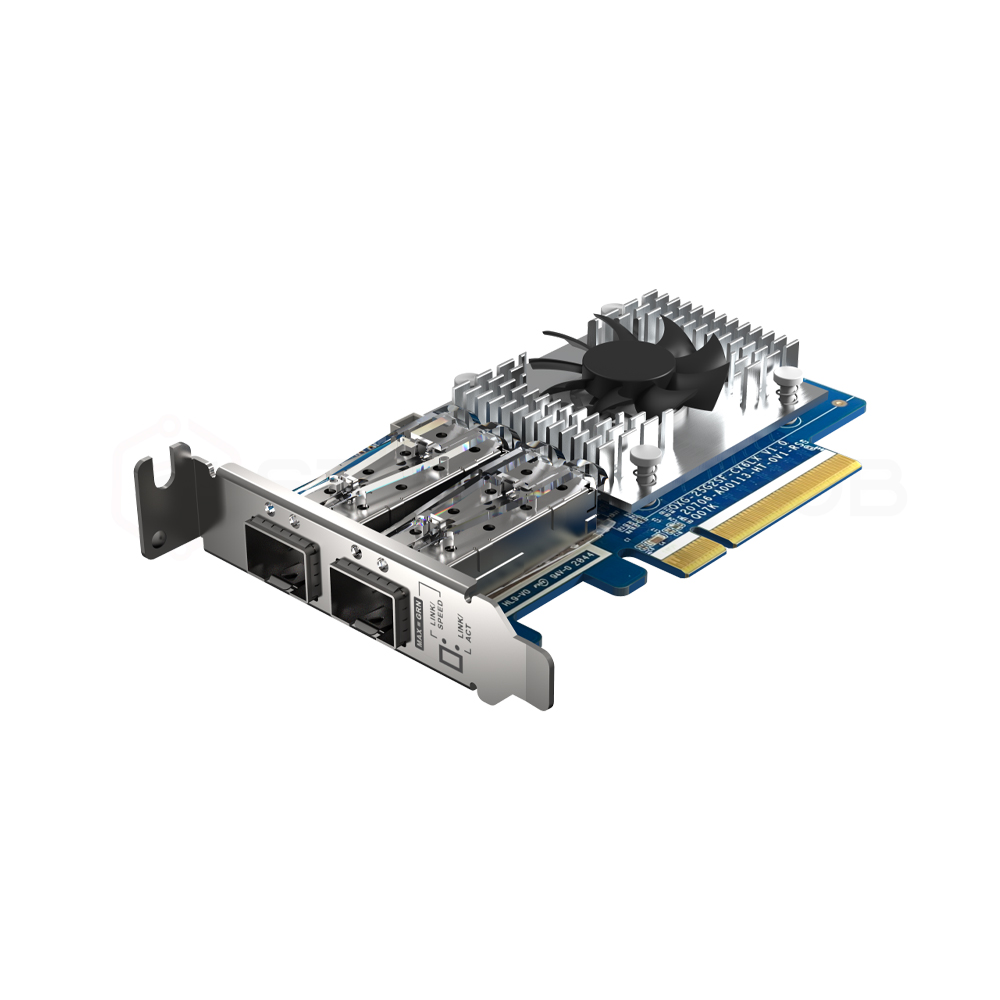

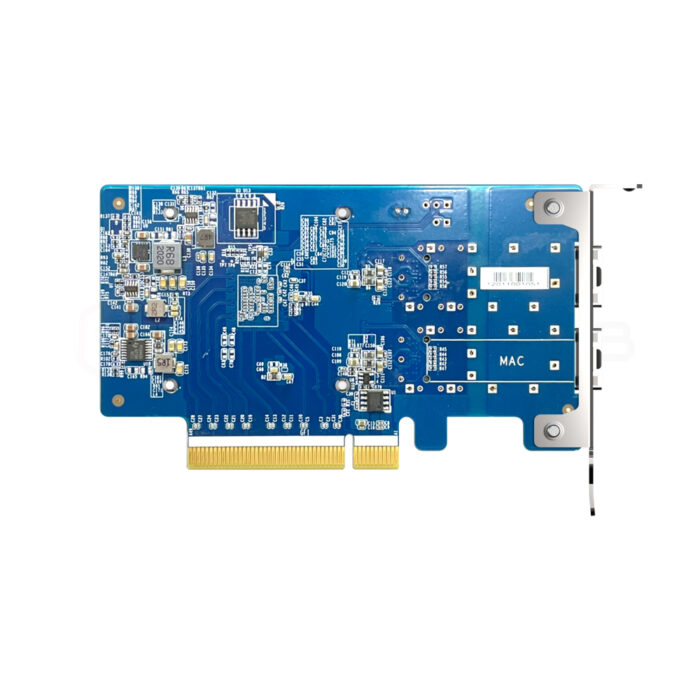

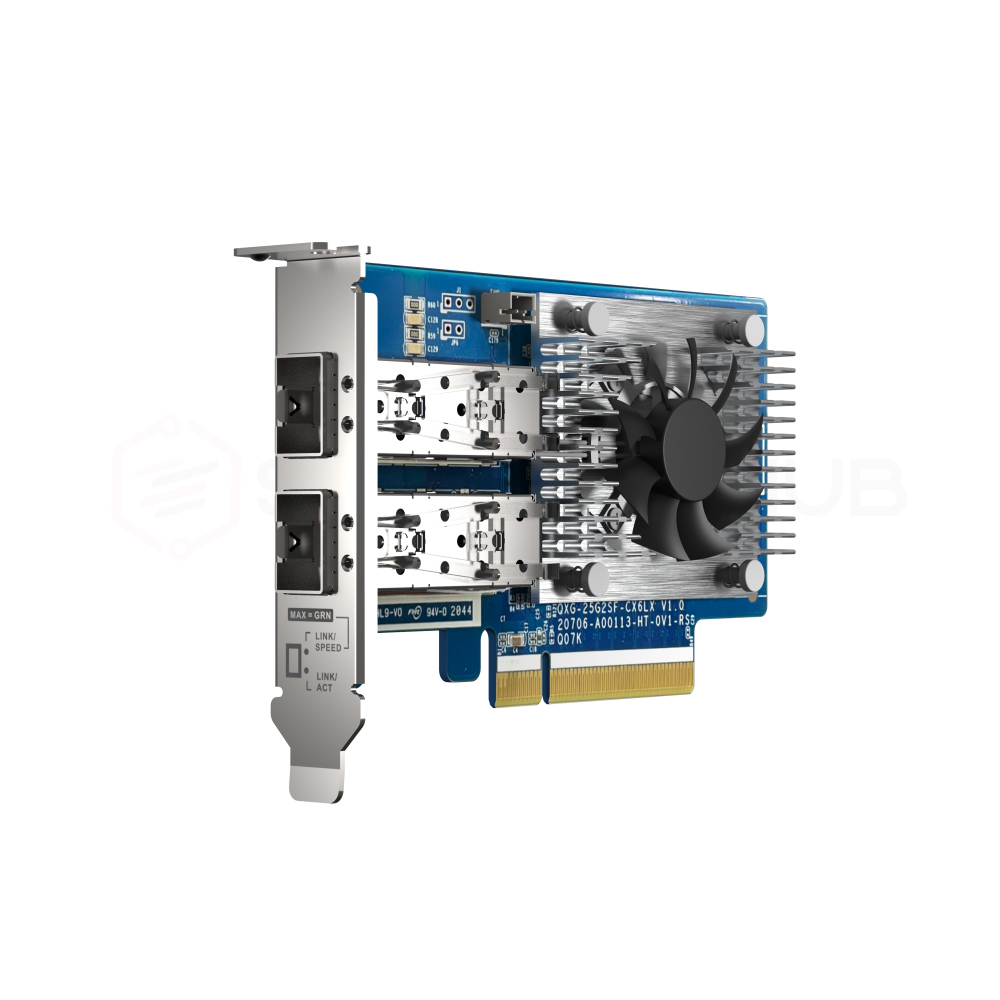

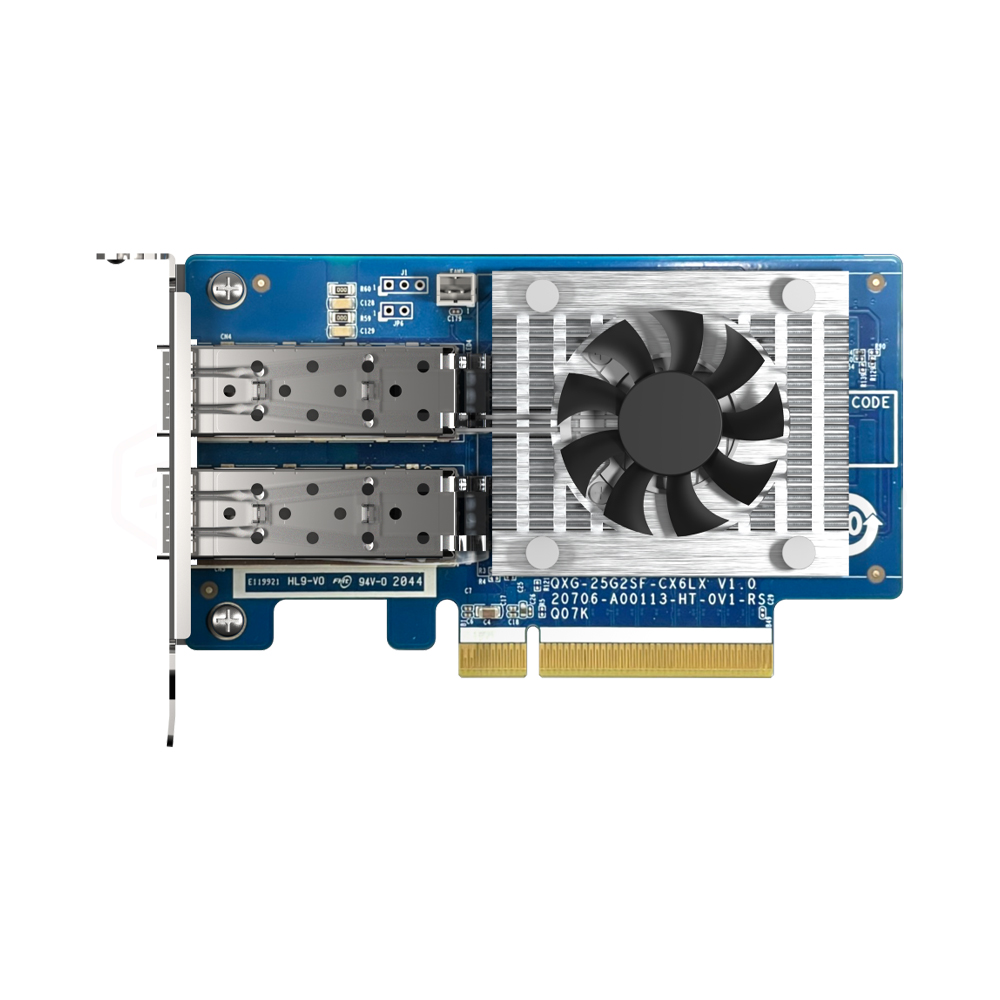

Dual-port 25 GbE network expansion card
- Download Datasheet
| Dimensions (L x W x H) | 117.33 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| Cable | CAB-DAC30M-SFP28,CAB-DAC15M-SFP28,TRX-25GSFP28-SR |
| Controller | NVIDIA Mellanox ConnectX-6 Lx |
| Number of Ports | 2 x SFP28 |
| Connector | SFP28 |
| PCIe and Lanes | PCIe Gen4 x8 |
| Transmission Rates | 25Gbps/10Gbps |
| IEEE Standards | IEEE 802.3ae 10 Gigabit Ethernet 25/50 Ethernet Consortium 25G and 50G supporting all FEC modes IEEE 802.3by 25G supporting all FEC modes IEEE 802.3ad, 802.1AX Link Aggregation IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode) IEEE 802.3ap based auto-negotiation and KR startup IEEE 802.1Q, 802.1P VLAN tags and priority IEEE 802.1Qaz (ETS) |
| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | |
| RDMA over Converged Ethernet (RoCE), Zero Touch RoCE (ZTR) Support | |
| VLAN insertion/stripping Support | |
| iSER Support | |
| NVGRE, VXLAN, Geneve Support | |
| How mant virtual functions | 512 |
| How many physical functions per host | 8 |
| Supported NAS operating systems | QTS/QuTS hero (recommend an upgrade to the latest version); Windows (Driver required); Linux (Driver required) |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | -Ubuntu 20.04 driver: mlx5_core, version: 5.15.0-97-generic -Ubuntu 22.04 driver: mlx5_core, version: 6.5.0-35-generic |
| Support Windows | Windows 8/10 |
| Support Windows Server | Windows Server 2016/2019 |
| Port and Cable | SFP28 DAC cable (3M) or SFP28 OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
