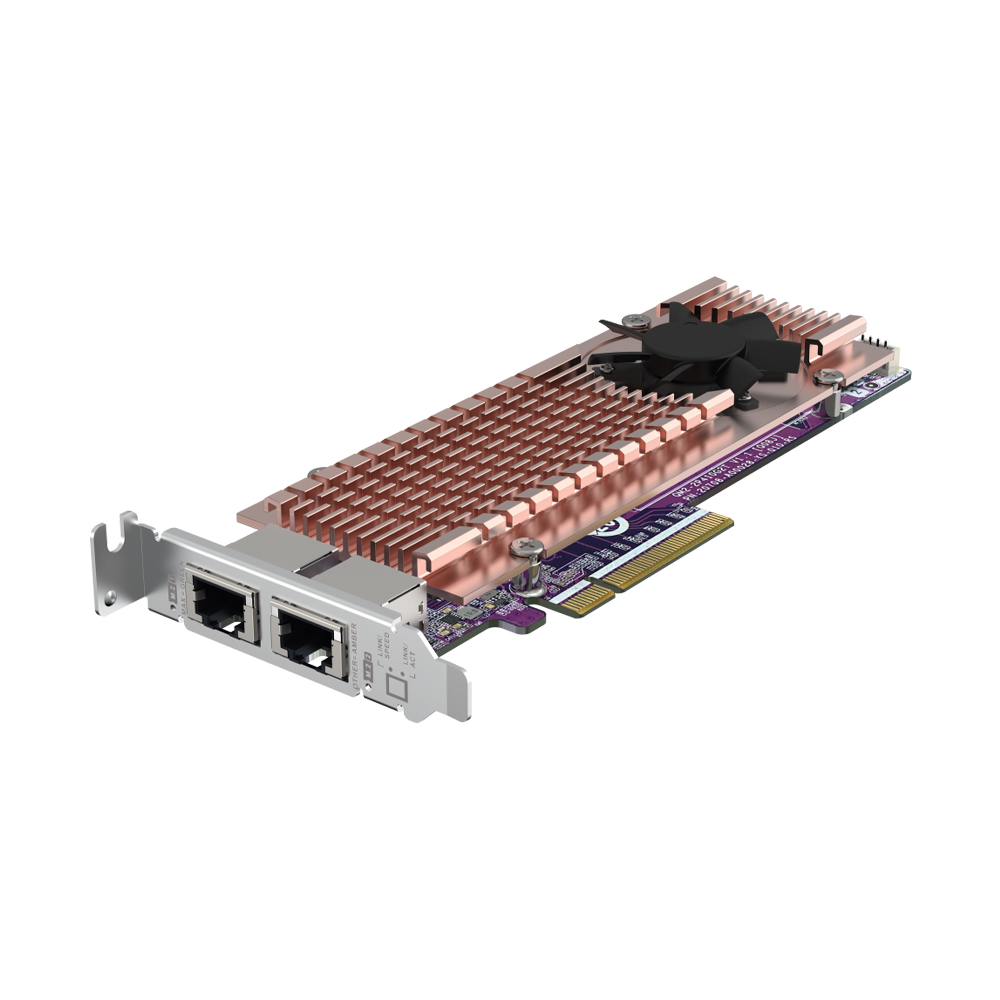

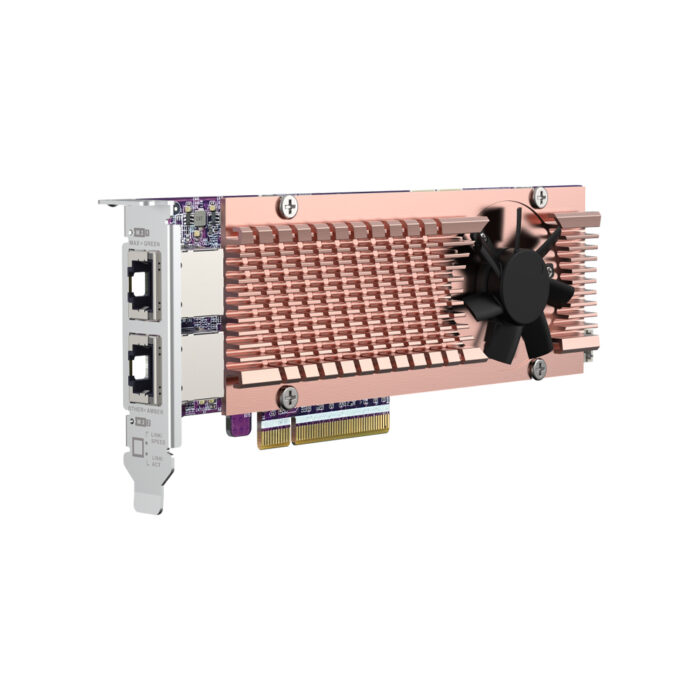

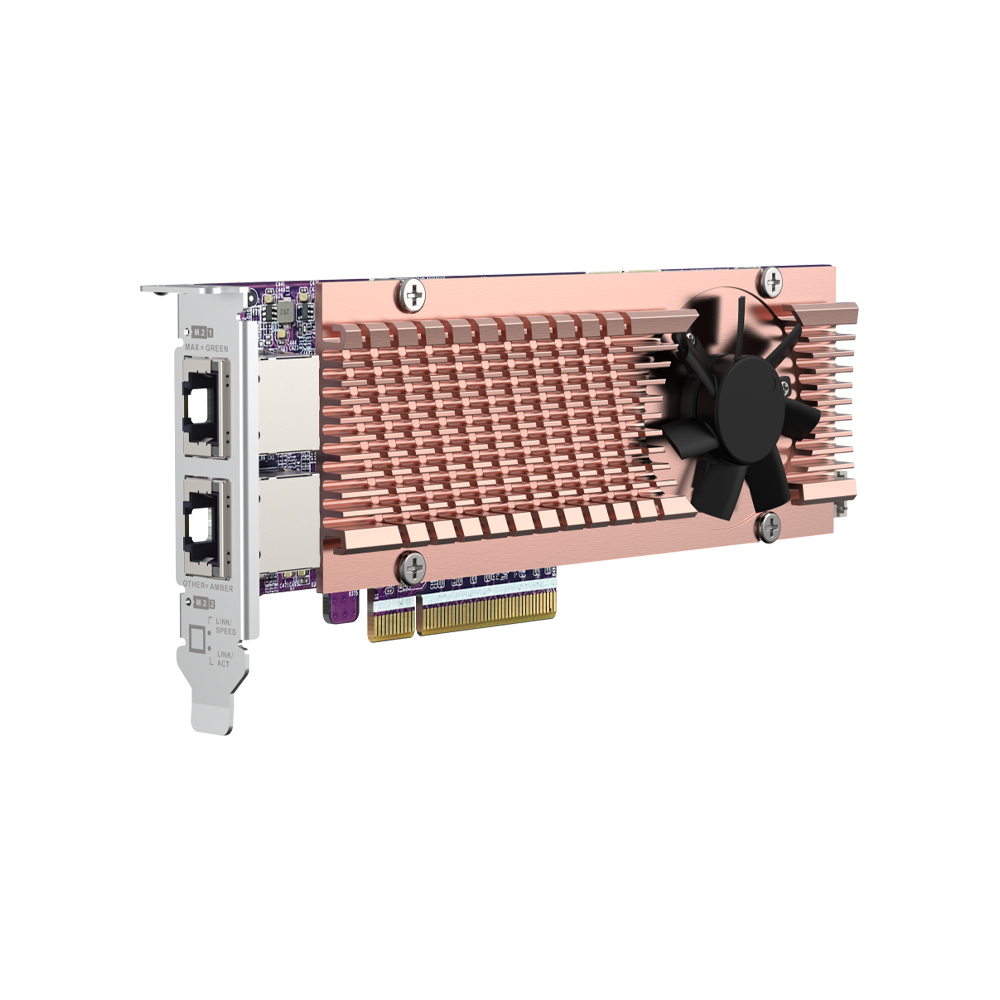

QNAP QM2-2P410G2T Dual M.2 2280 PCIe NVMe SSD & Dual 10GbE Expansion Card
The QNAP QM2-2P410G2T is a highly versatile expansion card designed to significantly upgrade both the storage and networking capabilities of compatible QNAP NAS systems and PCs. First and foremost, this card allows you to install two M.2 2280 PCIe Gen4 NVMe SSDs. Consequently, you can create an SSD caching volume, which dramatically accelerates file access and improves overall system responsiveness.
2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE ports expansion cards
The QM2-2P410G2T allows you to easily add M.2 NVMe SSDs and 10GbE RJ45 connectivity to your QNAP NAS, with no driver installation required. The QM2-2P410G2T features a Broadcom® controller, with PCIe 4.0 interface providing higher bandwidth to deliver faster computing speed and data access.
Tackle Performance Bottlenecks
The QM2-2P410G1T boosts performance by adding M.2 PCIe 4.0 NVMe SSDs.
Dual M.2 PCIe Slots
LED Indicators
Use the LED indicators to monitor the status of your M.2 SSDs.
Thermal Sensors
Use the thermal sensors to monitor the temperature of your M.2 SSDs.
10 Gigabit Ethernet Ports
Provides 10GBASE-T connectivity and backward compatibility with 5GbE, 2.5GbE, 1GbE, and 100MbE.
Cooling Module and Fan
A quiet cooling module (heatsink and smart fan) minimizes overheating risks and sustains constant high performance.
Future-Proof 10GbE Network Environments
The QM2-2P410G2T features a 10GBASE-T multi-Gigabit (10G/5G/2.5G/1G/100M) network ports to empower your QNAP NAS with 10GbE high-speed connectivity for bandwidth-demanding tasks. With QNAP’s various 10GbE switches, you can easily upgrade to a high-speed network environment.
For PC/ServerÂ
Highly energy efficient and cost effective, the QM2-2P410G2T provides a high-performance storage expansion and 10GbE solution.
Future-Proof 10GbE Network Environments
The QM2-2P410G2T features dual 10GBASE-T multi-Gigabit (10G/5G/2.5G/1G/100M) network ports to empower your PC/workstation with 10GbE high-speed connectivity for bandwidth-demanding tasks. With QNAP’s various 10GbE switches, you can easily upgrade to a high-speed network environment.
M.2 SSD Thermal Sensors
M.2 SSD thermal sensors allow real-time M.2 SSD temperature monitoring.
Quiet Cooling Module
A quiet cooling module (heatsink and smart fan) minimizes overheating risks to sustain constant high performance.
LED Indicators
LED indicators help with monitoring M.2 SSD status.
Tool-Less Installation
Tool-less quick installation and replacement M.2 SSD.
NAS Compatibility
4 Bays
TVS-472XT
6 Bays
TS-h686, TVS-672N, TVS-672X, TVS-672XT
8 Bays
TS-h886, TVS-872N, TVS-872X, TVS-872XT
12 Bays
TS-h1290FX, TVS-h1288X
16 Bays
TVS-h1688X
24 Bays
TDS-h2489FU, TS-h2490FU
28 Bays
TS-2888X
30 Bays
TS-h3088XU-RP
Specs:
Dual M.2 2280 PCI Express 4.0 NVMe SSD & dual-port 10GbE expansion card
| Controller | Marvell AQC113C |
| Connector | 2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen4 x8 |

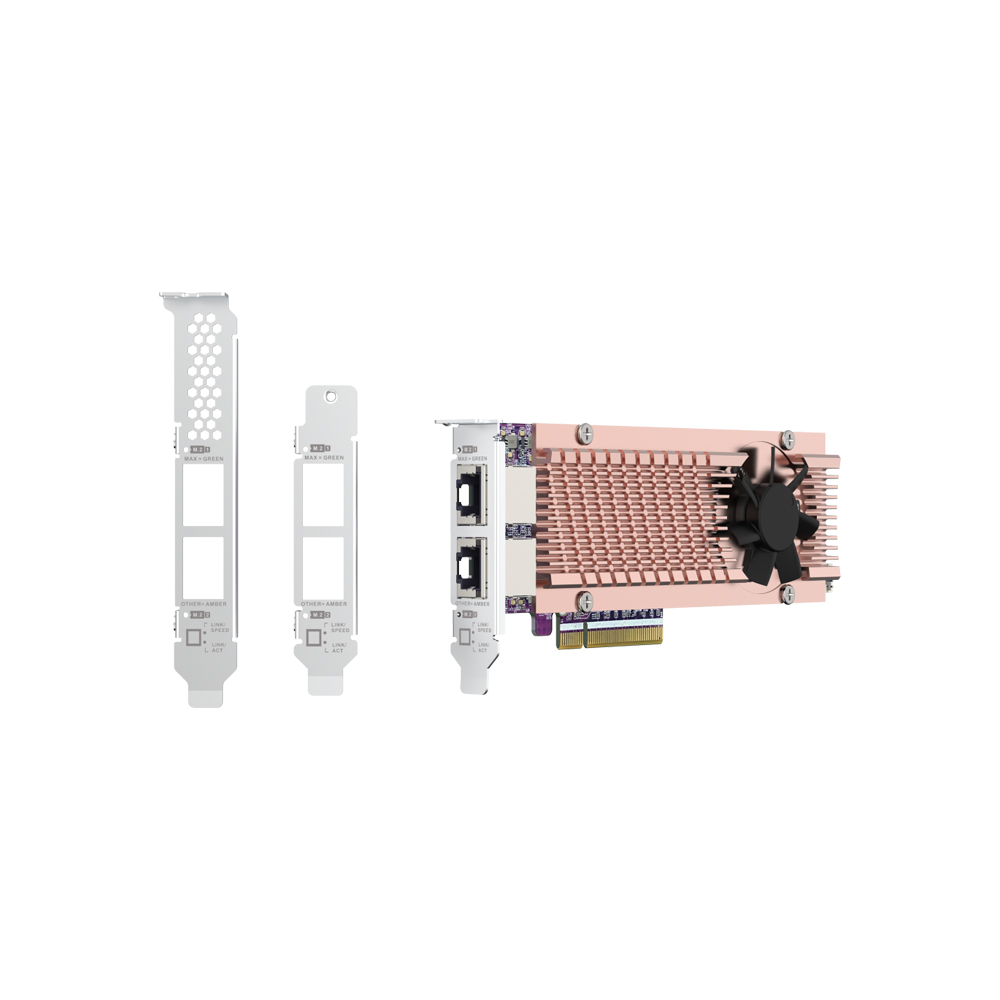

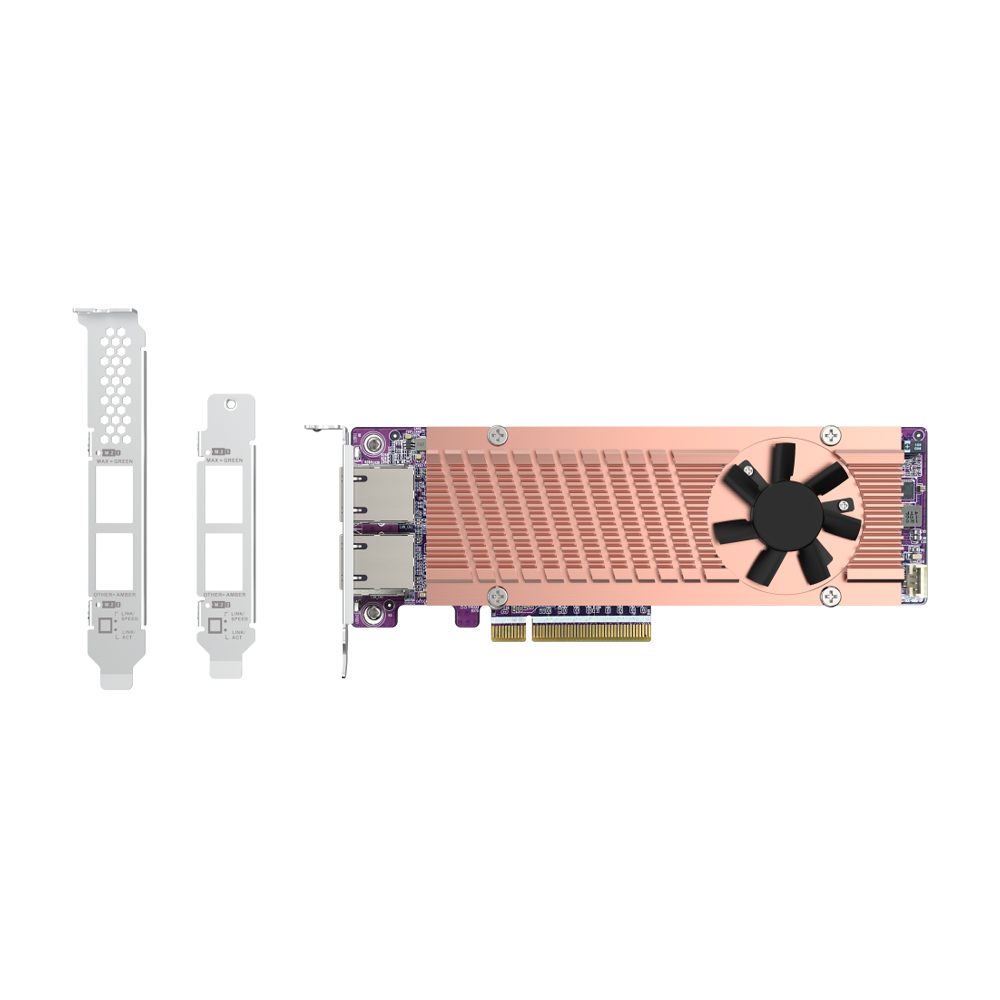

| Bracket | Low-profile (default). |
| Dimensions (L x W x H) | 187 × 19.35 × 68.9 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-6 class cable |
| Note [PC] | Note: Windows devices: The driver for QM2-2P410G2T is required. Click here to download the driver |
| Architecture Diagram |  |
| Standard Warranty | 2 years |
