EATON ATS RACK PDU EATS16
Product Overview

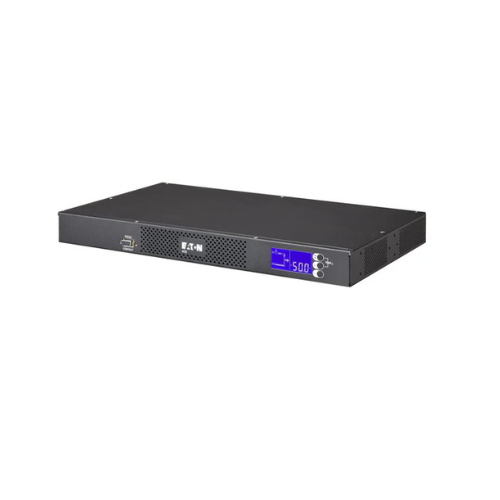

The Eaton EATS16 is a 1U automatic transfer switch (ATS) rack power distribution unit designed to provide seamless power redundancy for critical IT equipment. It accepts two independent input feeds and switches instantly between sources to ensure uninterrupted operation of connected devices.
Key Features
- Dual input connectors: two IEC C20 inputs for separate power sources
- Output receptacles: eight IEC C13 outlets and one IEC C19 outlet
- Maximum capacity of 3.84 kW at 200–240 V and 16 A single-phase operation
- Built-in ampere meter with LED indicators for real-time load monitoring
- Tool-free, horizontal 1U rack-mount installation in standard 19″ racks
- Compact form factor preserves valuable rack space
- No network interface required, simplifying deployment and troubleshooting
Technical Specifications
| Specification | Details |
|---|---|
| Catalog Number | EATS16 |
| Type | Automatic transfer switch PDU |
| Input Connections | 2 × IEC C20 |

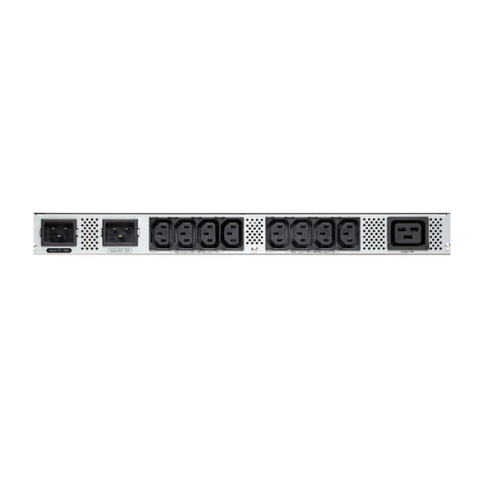

| Output Receptacles | 8 × IEC C13, 1 × IEC C19 |
| Maximum Load | 3.84 kW / 16 A |
| Input Voltage | 200–240 V |
| Frequency Rating | 50/60 Hz |
| Mounting Dimension (Standard) | 482.6 mm (19″) |
| Form Factor | 1U rack-mount |
| Mounting Direction | Horizontal |

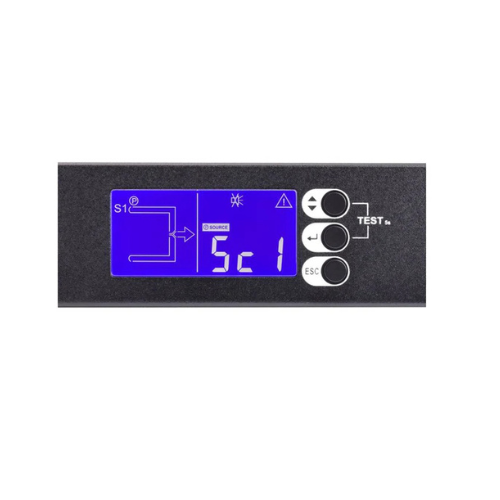

| Display | Ampere meter, LED indicators |
| Cord Length | 2 m (input cables C19 to C20) |
| Color | Black |
| Warranty | 2 years |
Physical & Environmental
The EATS16 measures 430 mm deep, 250 mm wide, and 43 mm high, weighing approximately 3.3 kg. It operates reliably in ambient temperatures from 0 °C to 40 °C and supports non-condensing humidity levels up to 90 %.
Package Contents
- Eaton EATS16 ATS rack PDU
- Quick-start guide and safety instruction booklet
- 2 × C19-to-C20 input power cables (1.8 m each)
- 2 × input cable lockers
- Plastic strips for output locking
- RS-232 serial cable for event logging
- Rack-mount accessories kit
Compliance & Warranty
The EATS16 is CE marked and meets IEC 60950-1 safety standards. Eaton provides a two-year limited warranty covering defects in materials and workmanship. Support resources include Eaton Intelligent Power Software Suite compatibility and online technical documentation.
