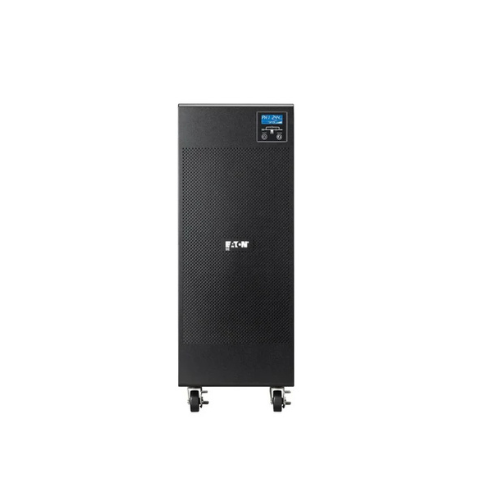

EATON 9E UPS – 9E6KI
General Overview
- Model: Eaton 9E6KI
- Type: Online double-conversion UPS
- VA Rating: 6000 VA
- Wattage: 4800 W
- Form Factor: Tower
- Topology: True online (double-conversion)
- Efficiency: 91% (Eco-mode: up to 96%)
- Color: Black
- Noise Level: <55 dB at 1 meter
Electrical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 176–276 V (110–276 V with derating) |
| Input Frequency | 45–66 Hz |

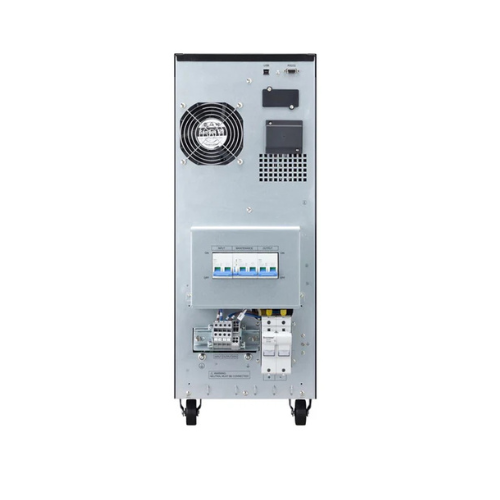

| Input Connection | Hardwired / Fixed connection |
| Output Voltage Range | 220/230/240 V ±2% |
| Output Frequency | 50/60 Hz |
| Output Connections | Hardwired only |
| Output Waveform | Pure sine wave |
| Power Factor | 0.8 |
| Voltage Distortion | <3% (linear load) |
Battery & Runtime
- Battery Type: Sealed lead-acid
- Battery Quantity: 15 × 12V / 9Ah
- Battery Replacement: User-replaceable
- Extended Battery Capability: Yes
- Battery Management:
- Automatic battery test
- Deep discharge protection
- Runtime graph available via LCD interface
Smart Features

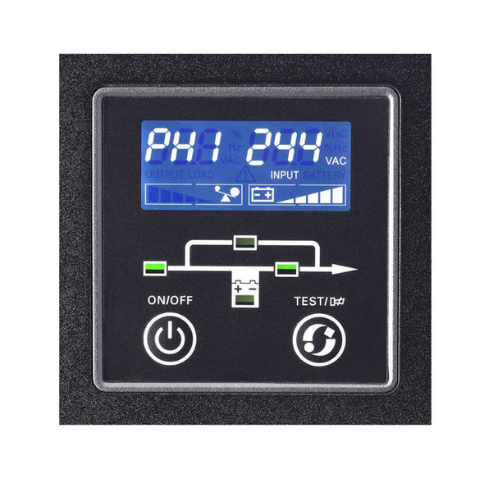

- LCD Display: Real-time status (load level, battery level, input/output voltage & frequency)
- Auto Shutdown: Yes
- Internal Bypass: Ensures continuity during UPS fault
- Maintenance Bypass: Standard feature for service continuity
- Communications:
- USB (HID compliant)
- RS232 serial port
- Mini-terminal block for remote power off
- Slot for optional communication card (SNMP, Modbus, Relay)
- Software Compatibility:
- Eaton Intelligent Power Manager
- Eaton Intelligent Power Protector
Physical & Environmental
| Attribute | Value |
|---|---|
| Dimensions (HxWxD) | 70.85 × 26.24 × 61.29 cm |
| Weight | 68 kg |
| Operating Temp | 0°C to 40°C |
| Altitude | Up to 3000 m |
| Humidity | 0–95% non-condensing |
Certifications & Compliance
- CE Marked
- TUV Certified
- IEC/EN 62040-1, IEC/EN 62040-2
- EAC compliant
- RoHS compliant
