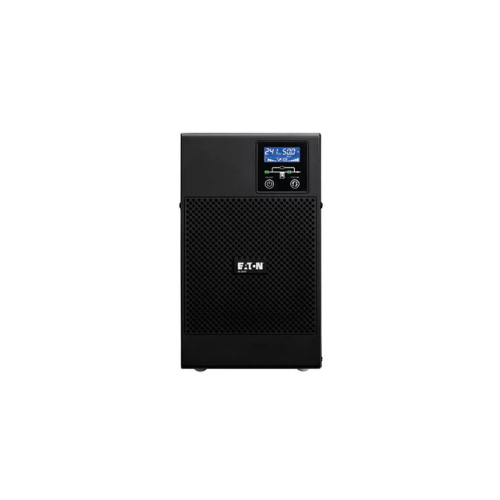

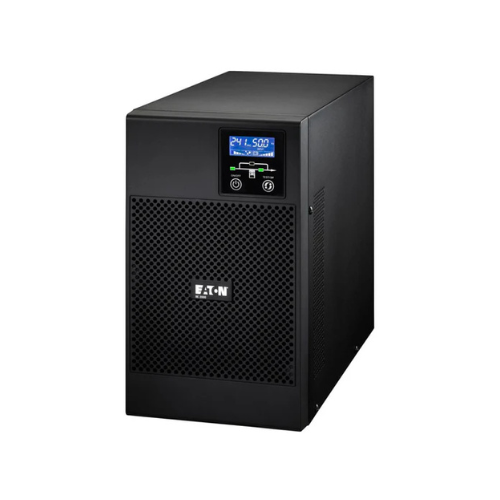

EATON 9E UPS 9E2000I – Tower
Product Overview
The Eaton 9E2000I is a 2 000 VA/1 600 W online (double-conversion) UPS in a compact tower form factor. It delivers pure sine-wave output with zero transfer time, ensuring uninterrupted, high-quality power for critical IT infrastructure.
Key Features
- 2 000 VA/1 600 W capacity with a 0.8 output power factor
- Online/double-conversion topology for consistent power conditioning
- Automatic voltage regulation (AVR) corrects input fluctuations without discharging the battery
- Six IEC C13 outlets providing surge protection and battery backup
- Hot-swappable, user-replaceable sealed lead-acid batteries
- Built-in USB (HID-compliant) and RS-232 serial ports for local monitoring and graceful shutdown
- One expansion slot for optional network management cards (SNMP, relay, etc.)

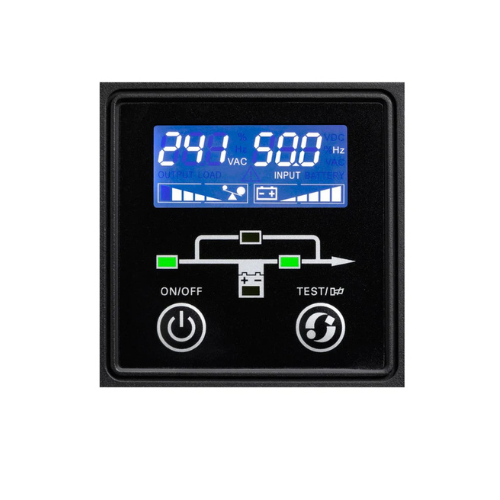

- LCD display showing real-time status, load level, battery capacity, and event logs
- Internal bypass for continuous power during UPS servicing or overload conditions
Technical Specifications
| Specification | Details |
|---|---|
| Topology | Online / double-conversion |
| Capacity | 2 000 VA / 1 600 W |
| Output Power Factor | 0.8 |
| Output Waveform | Pure sine wave |
| Output Receptacles | 6 × IEC C13 |
| Output Voltage | 230 V (selectable 220/230/240 V) ± 2% |
| Output Frequency | 50 Hz / 60 Hz |
| Voltage Distortion (Linear) | ≤ 3% |
| Transfer Time | 0 ms (online) |
| Input Connection | IEC C14 inlet |
| Input Voltage Range | 176–300 V (100–300 V with derating) |
| Input Frequency Range | 40–70 Hz |
| Input Power Factor | > 0.99 |
| Efficiency | Up to 91 % |
| Communication Ports | USB (HID-compliant), RS-232 |
| Expansion Slot | 1 slot for optional communication card |
| LCD Display | Yes — load, battery, input/output metrics |
| Internal Bypass | Yes |
| Dimensions (D × W × H) | 399 × 190 × 330 mm |
| Weight | 15.8 kg |
| Noise Level | < 37 dB at 1 m |
| Warranty | 2 years |
Battery & Runtime
Equipped with six user-replaceable 12 V/7 Ah sealed lead-acid batteries, the 9E2000I performs automatic self-tests and deep-discharge protection to extend battery life. Extended battery modules can be added for longer runtimes under critical loads.
Management & Connectivity
Local UPS status and graceful shutdown are handled via the USB (HID) and RS-232 serial ports. For network-based monitoring, an optional SNMP/ethernet card can be installed in the expansion slot. Eaton Intelligent Power Manager and Intelligent Power Protector software provide centralized oversight and automated scripting. [1][2]
Environmental & Compliance
Designed for reliable operation from 0 °C to 40 °C and altitudes up to 3 000 m (95 % non-condensing humidity), the 9E2000I meets IEC/EN 62040-1/2, CE, EAC, and other regional safety and EMC standards.
Package Contents
- Eaton 9E2000I UPS tower unit
- USB monitoring cable
- RS-232 serial cable
- Quick-start guide and safety instructions
Warranty & Support
Eaton provides a two-year limited warranty covering defects in materials and workmanship. Global technical support, replacement services, and software/firmware updates are available through Eaton’s support network.
