EATON 5PX GEN2 UPS – 5PX2200IRT3UG2
General Overview
- Model: Eaton 5PX Gen2 UPS
- Catalog Number: 5PX2200IRT3UG2
- VA Rating: 2200 VA
- Wattage: 2200 W
- Form Factor: Rackmount 3U / Tower convertible
- Topology: Line-interactive
- Output Power Factor: 1.0 (pure watt-for-VA efficiency)
- Efficiency: Up to 98% in high-efficiency mode
Electrical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 160–294 V (adjustable to 150 V–294 V) |
| Input Connection | IEC C20 |
| Input Frequency | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system) |
| Output Voltage Range | 230 V (+6% / -10%) |

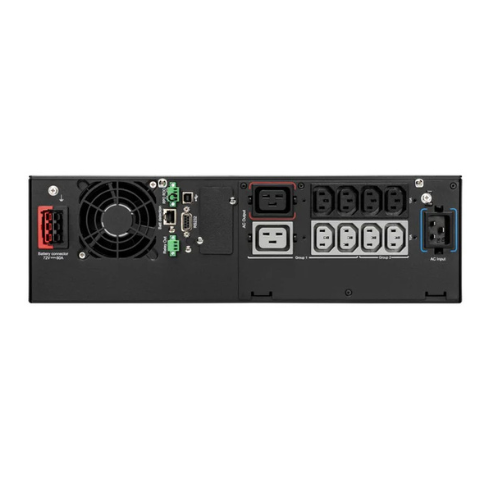

| Output Connections | 8 × IEC C13, 2 × IEC C19 |
| Output Waveform | Pure sine wave |
| Nominal Voltage Options | 200/208/220/230/240 V (default: 230 V) |
| Voltage Distortion | <1% (linear load) |
Battery & Runtime
- Battery Type: Maintenance-free sealed lead-acid
- Battery Quantity: 6 × 12V / 7Ah
- Battery Replacement: User-replaceable, hot-swappable
- Extended Battery Capability: Yes
- Battery Management:
- ABM® three-stage charging
- Temperature-compensated charging
- Deep discharge protection
- Auto battery test
- Automatic recognition of external battery units
Smart Features
- LCD Display: Multilingual graphical interface
- Auto Shutdown: Yes
- Load Segment Control: Prioritized shutdowns & remote reboot
- Communications:
- USB (HID compliant)
- RS232 serial port
- Dry contacts (3 outputs, 1 input, optocoupler, DB9)
- Remote On/Off and Remote Power Off terminals
- Slot for optional communication card (Modbus, SNMP, Relay)
- Software Compatibility:
- Eaton Intelligent Power Manager
- Eaton Intelligent Power Protector
Physical & Environmental
| Attribute | Value |
|---|---|
| Dimensions (HxWxD) | 129 × 438 × 483 mm |
| Weight | 27.5 kg |
| Noise Level | <40 dB at 1 meter |
| Operating Temp | 0°C to 40°C (recommended max: 25°C) |
| Altitude | Up to 3000 m |
| Humidity | 0–90% non-condensing |
Certifications & Compliance
- CE, cTUVus, EAC, UKCA, Ukr
- ENERGY STAR® certified
- IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3
- UL 1778, CSA 22.2
- RoHS & REACH compliant
