QNAP QSW-M5216-1T: Ultra-High-Speed 25GbE Fiber Managed Switch

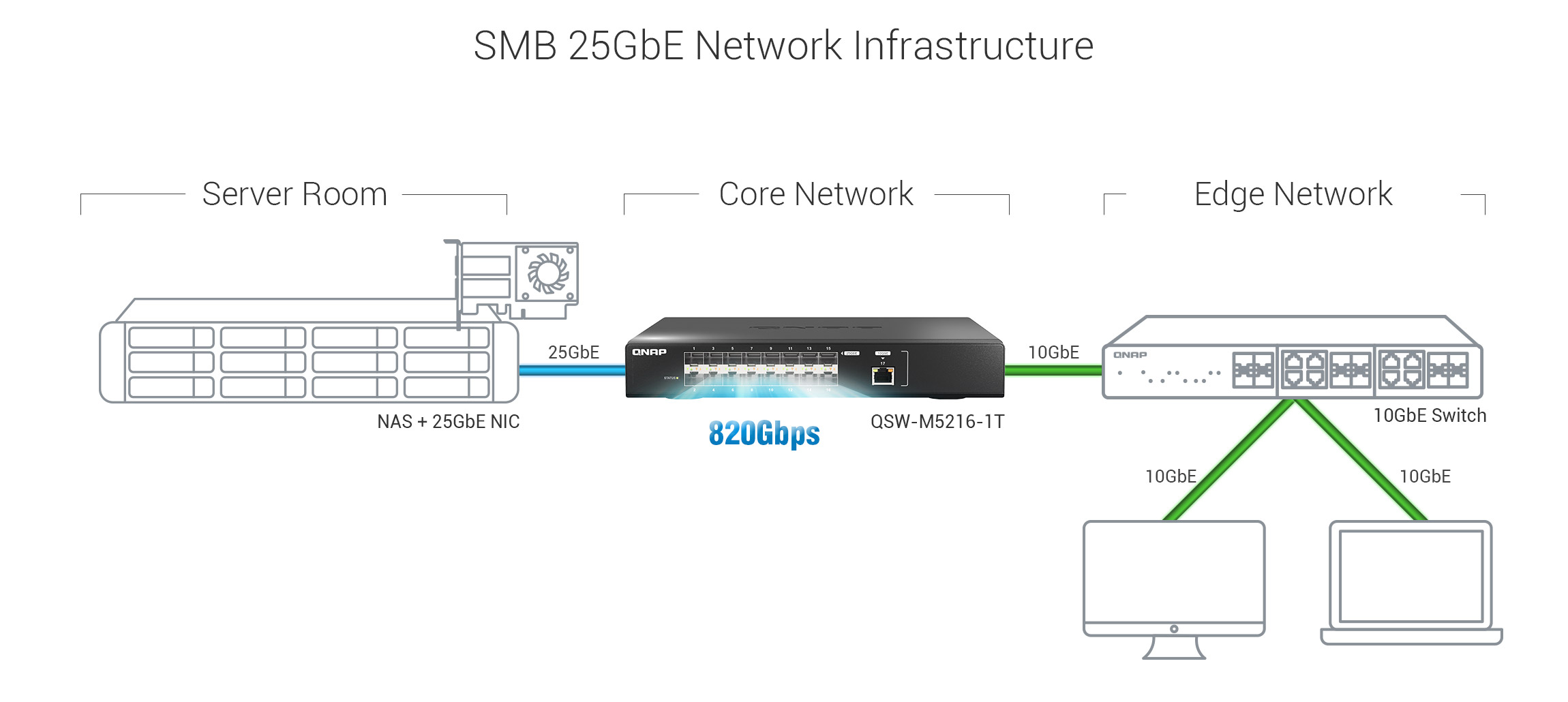

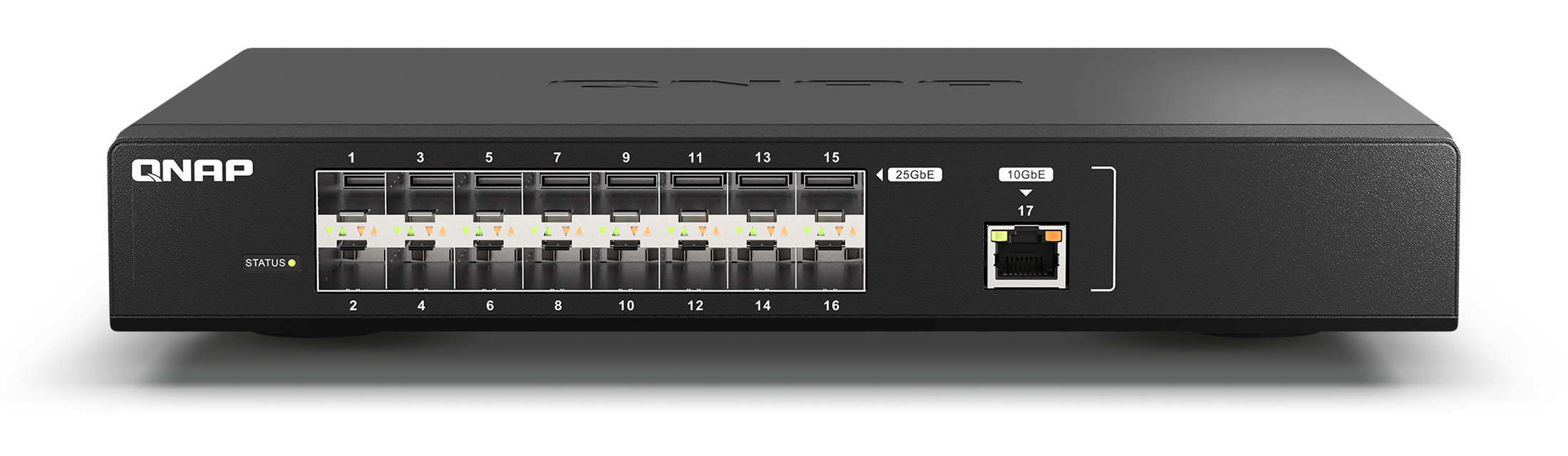

The QNAP QSW-M5216-1T is a powerful, web-managed switch designed to serve as the core of your high-speed backbone network. With sixteen 25GbE SFP28 fiber ports and one 10GbE NBASE-T port, it delivers exceptional switching capacity for demanding applications like high-speed storage, virtualization, video editing, and AI. Honored with the Interop Tokyo 2022 Best of Show Runner-up award, the QSW-M5216-1T offers an affordable and high-quality solution for small and medium-sized businesses looking to easily upgrade their network infrastructure.
Key Features
- Ultra-High-Speed Connectivity: Sixteen 25GbE SFP28 fiber ports for massive bandwidth and one 10GbE NBASE-T port for flexible hybrid network deployment.
- Massive Switching Capacity: A backbone switching capacity of 820 Gbps ensures every port can deliver its full potential without bottlenecks.
- User-Friendly Management: The intuitive QNAP Switch System (QSS) web UI makes central network management simple, even for non-IT professionals.
- Backward Compatibility: 25GbE SFP28 ports are backward compatible with 10GbE SFP+ and 1GbE SFP, while the 10GbE RJ45 port supports multiple speeds (10G/5G/2.5G/1G).
- Advanced Layer 2 Functions: Supports key management features like LACP, VLAN, ACL, and RSTP to efficiently control bandwidth and enhance security.
- Cost-Effective Upgrade: Offers a significant performance increase over 10GbE networks at a comparable price point, making 25GbE accessible to SMBs.
Connectivity & Performance
- Total Ports: 17 ports
- 25GbE Ports: 16 x 25GbE SFP28 fiber ports
- 10GbE Port: 1 x 10GbE BASE-T (RJ45) port
- Management Port: 1 x 1GbE RJ45 (Out-of-Band)
- Switching Capacity: 820 Gbps
- Total Non-Blocking Throughput: 410 Gbps
- MAC Address Table: 32K
- Jumbo Frames: 9K
- PHY IC: AQC100S (for the 10GbE port)
- Management Type: Web Managed
QSS: Intuitive Network Management Software
- Sleek Design: At-a-glance dashboard with flat control layers and one-click login.
- Port Management: On-screen display matches the physical ports for greater usability.
- Value-Added Functions: Provides a settings guide, status charts, and online firmware updates to reduce learning and management costs.
- Network Optimization: Offers powerful bandwidth and packet control functions to boost network performance:
- LACP (Link Aggregation): Combines multiple connections to increase throughput and provide redundancy.
- VLAN: Allows groups of devices to be segmented into virtual networks for better security and organization.
- QoS (Quality of Service): Prioritizes bandwidth to optimize resource allocation for critical applications.
- IGMP Snooping: Minimizes bandwidth loss and prevents network information leakage for multicast traffic.
Security & System Functions
- ACL (Access Control Lists): Provides robust security with access controls.
- LLDP: Facilitates device discovery for easier troubleshooting.
- RSTP (Rapid Spanning Tree Protocol): Prevents network loops and ensures a reliable backup path for redundancy.
- Flow Control: Compliant with IEEE802.3x to prevent packet loss in full-duplex mode.
Physical Specifications
- Form Factor: Rackmount
- Dimensions (H x W x D): 43.5 x 285 x 237.7 mm
- Net Weight: 2.15 kg
- Gross Weight: 2.85 kg
- LED Indicators: Per Port: Speed/Link/Activity | Per System: Power/Status
- Buttons: Reset button
Power & Environmental
- Power Supply: Internal Power Supply Unit
- Input Power: AC, 100-240V, 50/60 Hz
- Max. Power Consumption: 32.602 W
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Relative Humidity: 5% to 95% Non-condensing
Compliance & Warranty
- Certifications: CE, FCC, VCCI, BSMI (Electromagnetic Compliance: Class A)
- Warranty: 2 Years
Important Notes
- Product images are for illustrative purposes and may differ from the actual product.
- Designs and specifications are subject to change without notice.
- The terms HDMI and its logos are trademarks of HDMI Licensing Administrator, Inc.
