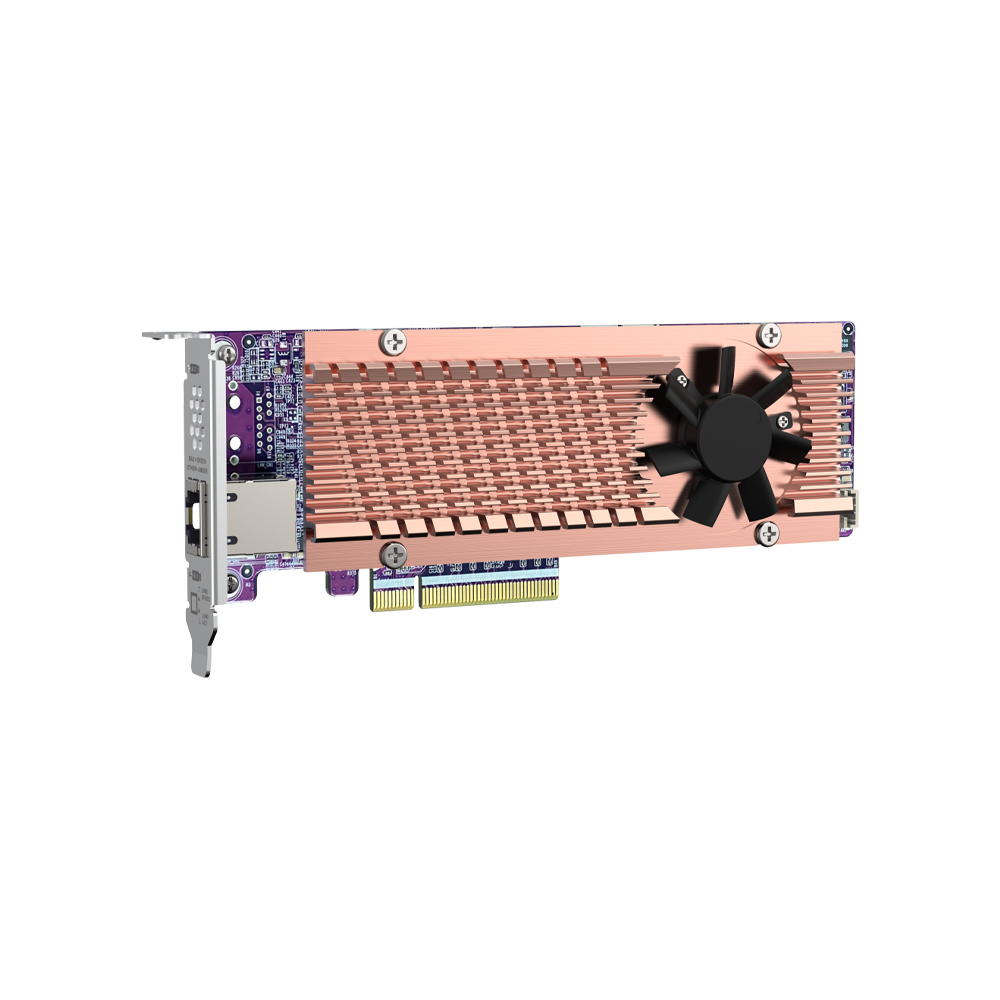

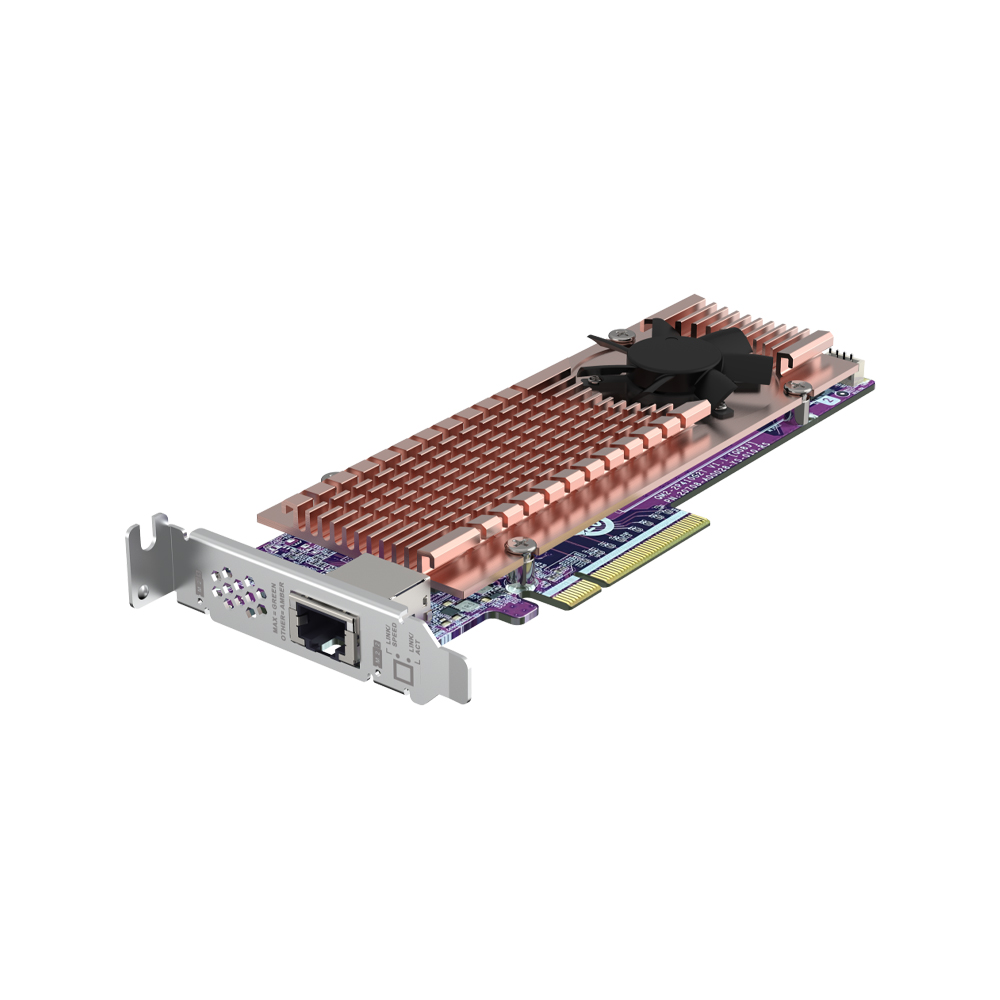

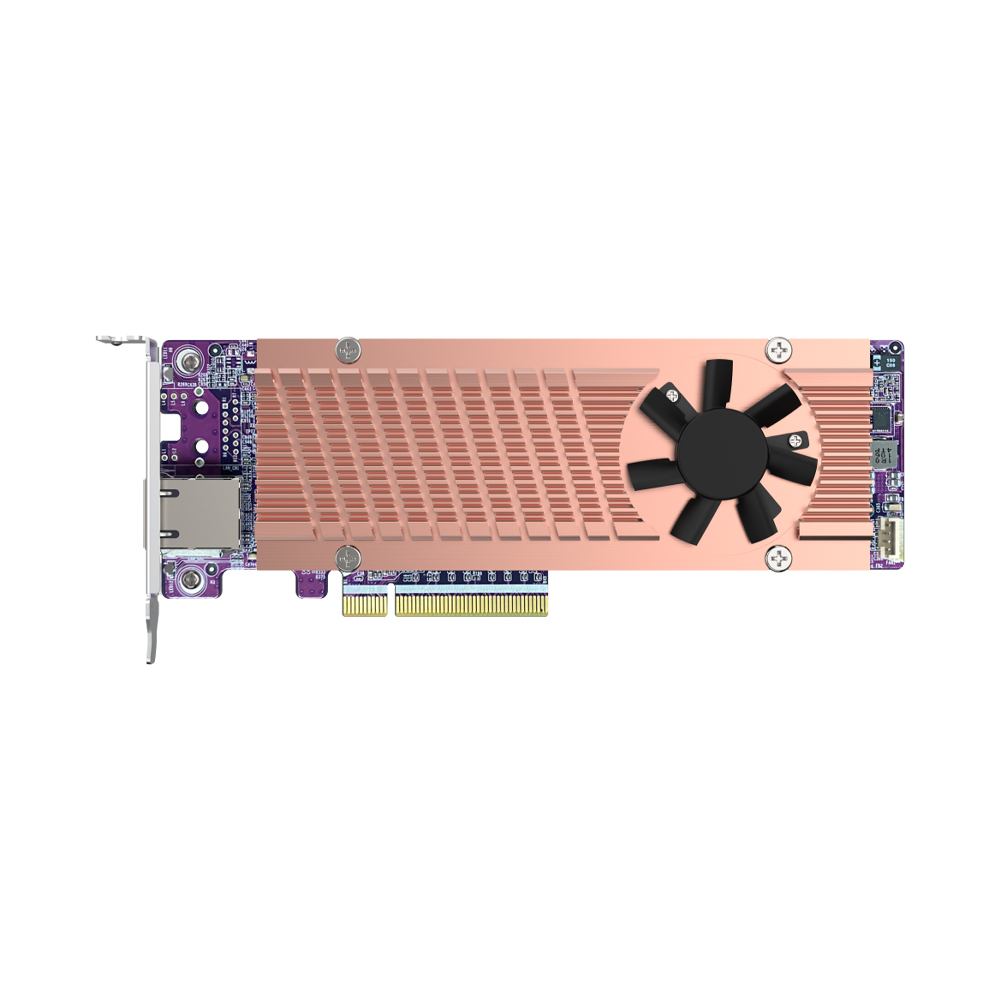

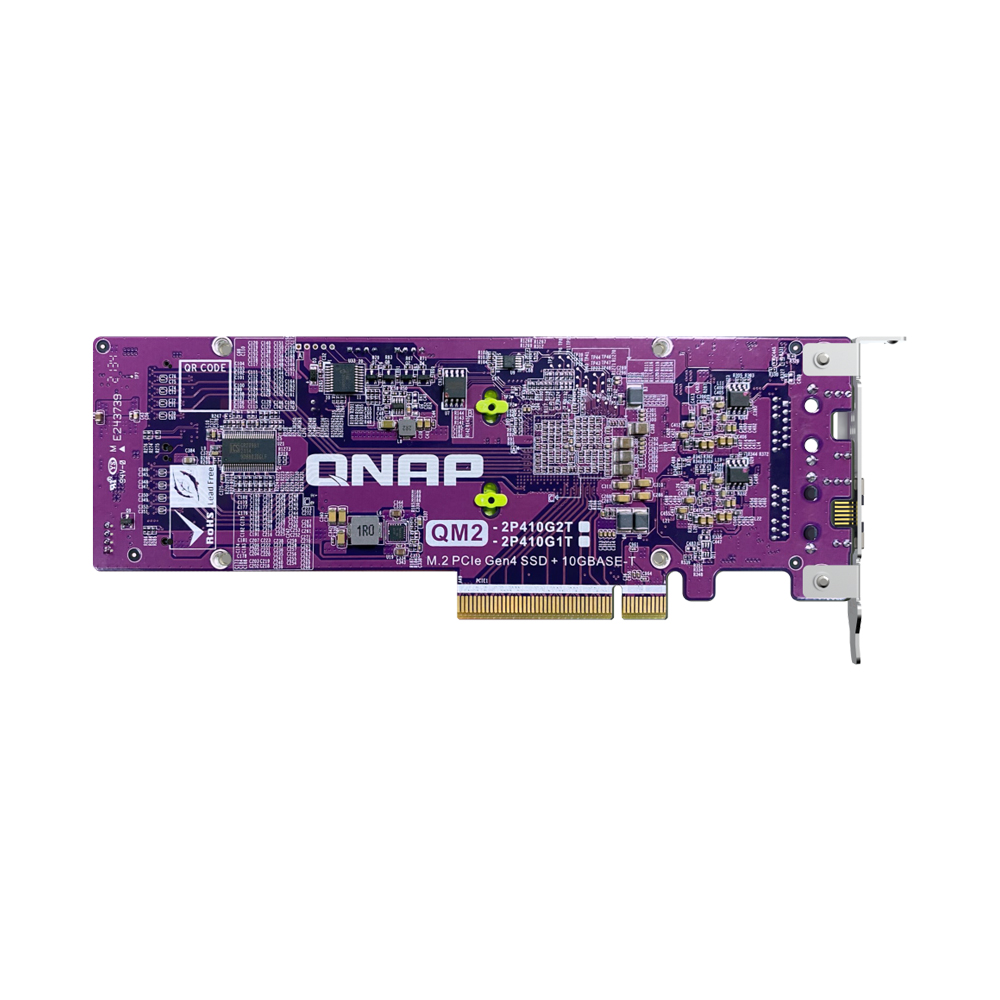

QNAP QM2-2P410G1T Dual M.2 2280 PCIe NVMe SSD & 10GbE Expansion Card
The QM2-2P410G1T allows you to easily add M.2 NVMe SSDs and 10GbE RJ45 connectivity to your QNAP NAS, with no driver installation required. The QM2-2P410G1T features a Broadcom® controller, with PCIe 4.0 interface providing higher bandwidth to deliver faster computing speed and data access.
Tackle performance bottlenecks
The QM2-2P410G1T boosts performance by adding M.2 PCIe Gen4 NVMe SSDs. It doesn’t occupy any 3.5-inch drive bays, allowing you to maximize both your storage capacity and performance.
Dual M.2 2280 PCIe Gen4 NVMe SSD & single-port 10GbE expansion card
| Controller | Marvell AQC113C |
| Connector | 2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen4 x8 |

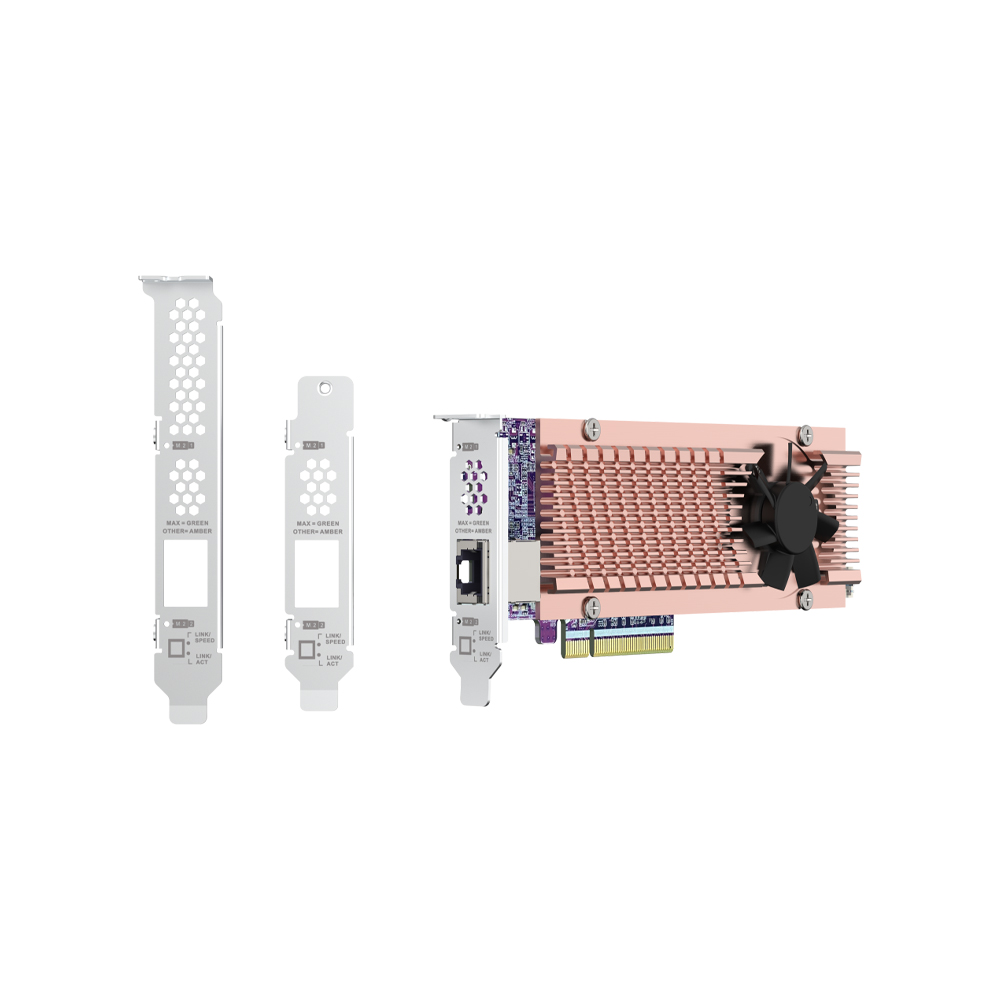

| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 187 × 68.9 × 19.35 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-6 class cable |
| Note [PC] | Note: Windows devices: The driver for QM2-2P410G1T is required. Click here to download the driver |
| Architecture Diagram |  |
