2.5-inch 6Gbps SAS to SATA drive adapter (Designed for dual-controller all-flash ES2486dc NAS)
| Standard Warranty | 2 years |
| Supported Drives | 1 x 2.5-inch SATA 6Gbps SSD |
| Host Interface | SAS 6Gbps |
| Supported Operating Systems | QES 2.1.0 (or later) for dual controller NAS or JBOD |
| Dimensions (L x W x H) | 69.87 × 21.78 × 14.5 mm |
| Weight | 0.02 kg |
| Note | QDA-SA3 adapters are sold in a pack of four.
The connected drive may not reach its optimal performance due to protocol translation and some overhead. QDA-SA3 does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system. |
-
1
Supports 2.5-inch SATA HDD/SSD.
-
2
Up to 6Gb/s file transfer speeds.
-
3
The installed SATA drive can share SAS dual-port advantages for higher reliability.

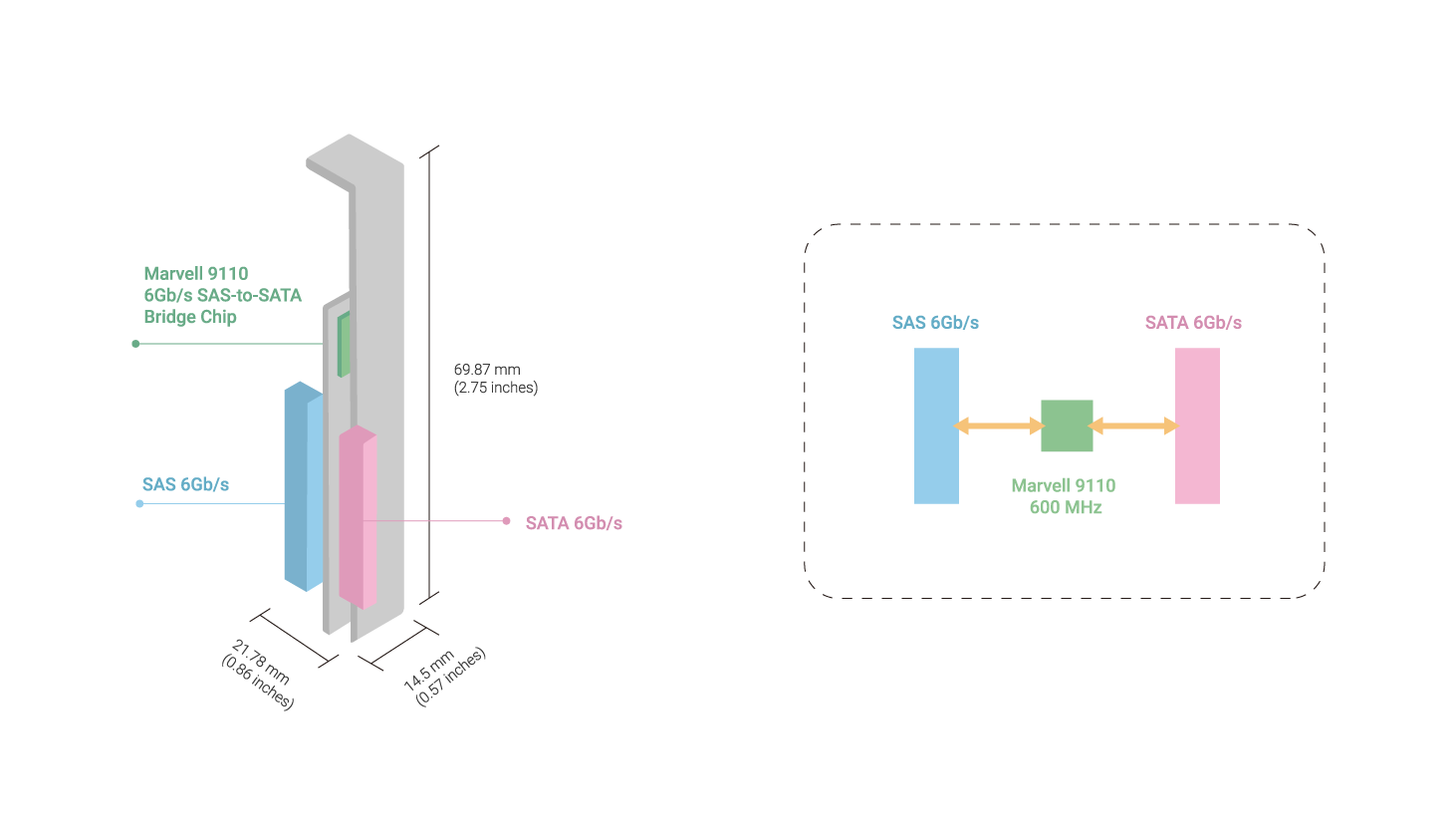

Architecture diagram
Note: The connected drive may not reach its optimal performance due to protocol translation and some overhead.

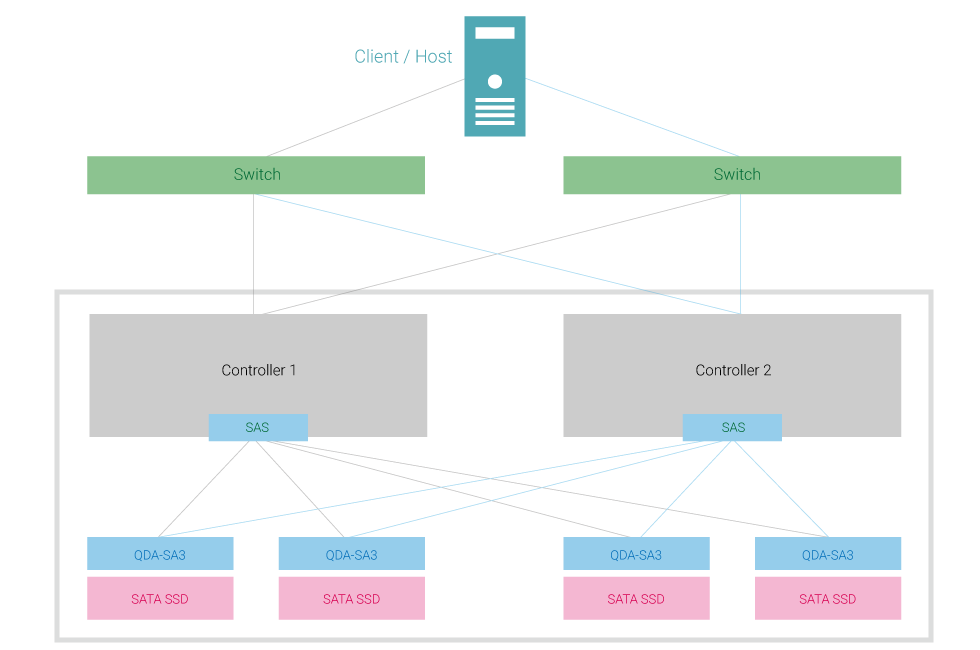

SAS dual-port advantage for fault tolerance
SAS features dual porting for redundancy, eliminating single points of failure and allowing for higher reliability and performance. By installing a SATA drive with the QDA-SA3 into a dual-controller all-flash Enterprise ZFS NAS, the SATA drive can share these SAS dual-port advantages to ensure a high-availability, fault tolerant enterprise storage environment.
Designed for all-flash Enterprise ZFS NAS

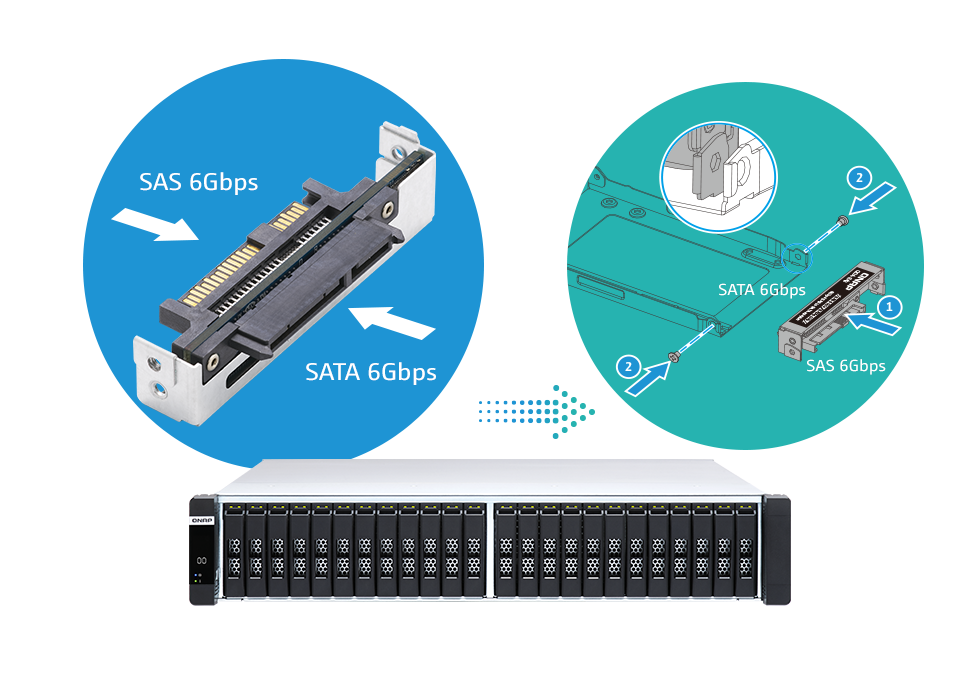

The QDA-SA3 can be easily installed in the 2.5-inch disk tray of an all-flash array Enterprise ZFS NAS (ES2486dc disk tray model: TRAY-25-NK-BLK04).
Note: QDA-SA3 does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system.
