EATON 5P UPS – 5P1150I
Product Overview

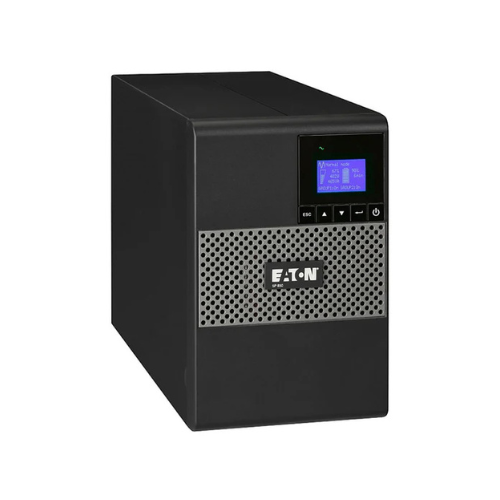

The Eaton 5P1150I is a line-interactive tower UPS delivering 1 150 VA / 770 W of clean, sine-wave backup power. It combines Automatic Voltage Regulation (AVR) with advanced energy-metering and an intuitive LCD interface to protect critical IT equipment—servers, network switches, storage arrays—while optimizing efficiency and runtime.
Key Features
- Line-interactive topology with AVR for steady output during brownouts and over-voltages
- 1 150 VA / 770 W capacity supporting power factors up to 0.7
- Up to 97 % online efficiency to lower energy and cooling costs
- Next-generation graphical LCD displaying load, battery and input/output status
- Two user-configurable outlet groups for remote reboot and runtime optimization
- Hot-swappable, user-replaceable lead-acid batteries with Advanced Battery Management (ABM)
- One UPS slot for optional communication cards (Network Management, Relay, or Industrial)
- Compatibility with Eaton Intelligent Power Manager and Intelligent Power Protector software
- USB (HID) and RS-232 serial ports for local monitoring and controlled shutdown
Technical Specifications
| Specification | Details |
|---|---|
| VA Rating | 1 150 VA |
| Wattage | 770 W |
| Topology | Line-interactive with AVR |
| Output Waveform | Pure sine wave |
| Output Voltage | 230 V (±6 % / –10 %) |
| Output Frequency | 50 Hz or 60 Hz |
| Output Power Factor | 0.7 |
| Outlets | 8 × IEC C13 (battery + surge protection) |
| Input Connection | 1 × IEC C14 |
| Input Voltage Range | 150 V – 294 V (selectable 200/208/220/230/240 V; default 230 V) |
| Input Frequency Range | 47 – 70 Hz |
| Transfer Time | Typical 2–4 ms |
| Efficiency (Online) | Up to 97 % |
| Runtime at 50 % Load | 11.5 minutes |
| Battery Type | 2 × 12 V, user-replaceable, maintenance-free lead-acid |
| Battery Management | ABM or constant voltage charging; automatic tests; deep-discharge protection |
| Communications | USB (HID-compliant), RS-232 serial |
| Management Software | Eaton Intelligent Power Manager; Intelligent Power Protector |
| Dimensions (D × W × H) | 345 × 150 × 230 mm |
| Weight | 11.12 kg |
| Warranty | 3 years electronics, 3 years batteries (with registration) |
| Compliance & Certifications | UL 1778; IEC/EN 62040-1/2; CE; EAC; cTUVus |
Input & Output Details

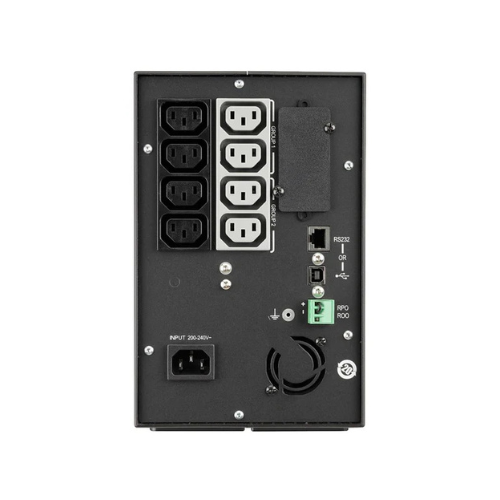

The 5P1150I accepts AC input via an IEC C14 inlet at 150 V–294 V and 47 – 70 Hz. It provides eight IEC C13 outlets that deliver regulated 230 V AC (±6 %/–10 %) and automatically switch to battery backup when line voltage falls outside safe thresholds.
Battery & Runtime
Equipped with two hot-swappable, user-replaceable 12 V lead-acid batteries, the UPS runs automatic self-tests at startup and at scheduled intervals. At half load, it provides approximately 11.5 minutes of runtime, with extended runtimes available through additional battery modules.
Management & Connectivity
A front-panel graphical LCD and multi-function navigation buttons offer real-time insight into load, input/output voltages, battery status, and system logs. The built-in USB (HID) and RS-232 serial ports enable seamless integration with Eaton UPS Companion software for automated shutdowns, event logging, and advanced notifications. An optional network management card slot supports SNMP/SNMP v3 and web-based monitoring.
Environmental & Compliance
Designed for reliable operation in temperatures from 0 °C to 40 °C and 0 %–90 % non-condensing humidity, the 5P1150I meets global safety and environmental standards: UL 1778, IEC/EN 62040-1/2, CE, EAC, and cTUVus.
Package Contents
- Eaton 5P1150I UPS tower unit
- USB cable
- Serial cable
- 2 × IEC C13 to IEC C14 power cables
- Quick-start guide and safety instruction booklet
Warranty & Support
Eaton backs the 5P1150I with a three-year limited warranty on electronics and batteries (with online product registration). Global technical support and firmware/software updates are available through Eaton’s website and authorized service partners.
