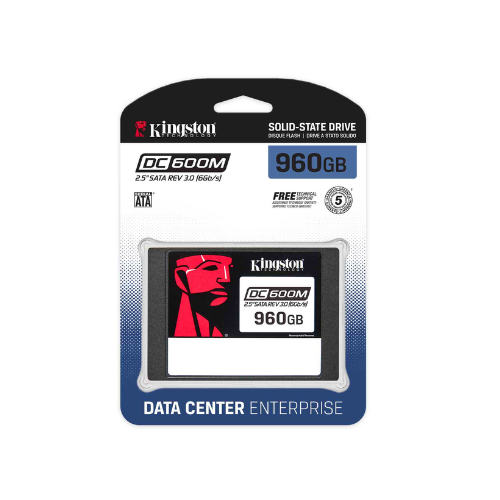

Kingston DC600M 960 GB Enterprise SATA SSD
Overview
The Kingston DC600M is a fourth-generation, mixed-use enterprise SATA 3.0 SSD series engineered for data center workloads. The 960 GB model combines high-density 3D TLC NAND with on-board power-loss protection via hold-up capacitors to safeguard data during unexpected outages and ensure successful re-initialization on next power-up.
Key Features
- 2.5 in form factor with SATA Rev. 3.0 (6 Gb/s) interface, backward compatible with SATA 2.0
- 3D TLC NAND and DRAM cache for sustained performance
- Hardware-based power-loss protection (PLP) via onboard capacitors
- Designed for mixed-use server workloads, RAID arrays, hyperscale and cloud environments
- Enterprise SMART monitoring with static and dynamic wear-leveling
Performance (960 GB Model)
| Metric | Specification |
|---|---|
| Sequential Read | Up to 560 MB/s |
| Sequential Write | Up to 530 MB/s |
| Steady-State 4 K Random Read | Up to 94 000 IOPS |
| Steady-State 4 K Random Write | Up to 65 000 IOPS |
| QoS Latency (99.999% Read/Write) | ~200 µs / ~300 µs |
| Typical Latency (Read/Write) | < 200 µs / < 30 µs |
Endurance & Reliability
- Endurance (TBW): 1 752 TB written over drive lifetime
- Drive Writes Per Day (DWPD): 1 DWPD over 5 years; 1.66 DWPD over 3 years
- SMART Monitoring: Tracks wear leveling, life remaining, temperature, usage statistics
- Static and dynamic wear-leveling algorithms extend NAND lifespan
Physical & Environmental
| Attribute | Specification |
|---|---|
| Dimensions (L × W × H) | 100.1 × 69.9 × 7 mm |
| Weight | ~ 69 g |
| Hot-Plug Capable | Yes |
| Power Consumption | Idle: 1.30 W / Avg: 1.45 W / Max Write: 3.6 W / Max Read: 1.6 W |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | – 40 °C to 85 °C |
| Humidity | 5% to 95% RH (non-condensing) |
Security & Compliance
- Encryption: AES 256-bit hardware encryption available on DC600ME variant (not on DC600M)
- TCG Opal 2.0 Security: Supported by DC600ME only
- Certifications: CE, FCC, RoHS, REACH
